Orbital Automatic Pipe Weld Machine Orbital Welding Accessories Weld Head tig Portable Welding Machine Orbital Stainless Steel Tube Welder
Orbital Automatic Pipe Weld Machine Orbital Welding Accessories Weld Head tig Portable Welding Machine Orbital Stainless Steel Tube Welder
No se pudo cargar la disponibilidad de retiro
Product Details
|
Model
|
FXT40 Pro Inverter welding power supply
|
||
|
Current input(V)
|
380V ± 10% (AC)
|
Current output (A)
|
5-400A(DC)
|
|
No-load voltage (V)
|
80
|
Power(KVA)
|
21.5
|
|
Temporary load rate
|
|||
|
Current input
|
Average output
|
Temporary load rate
|
|
|
380V
|
400A
|
60%
|
|
|
380V
|
310A
|
100%
|
|
|
Other
|
|||
|
Protective gas
|
argon
|
Cooling method of welding gun
|
water-cooling
|
|
Overall dimension(mm)
|
1100x454x951
|
Weight (KG)
|
95
|
|
control mode
|
PLC
|
Store parameters
|
50 Groups
|
|
Function control
|
DC/pulse current, rotational motion, wire feeding motion, protective gas control, arc length control, yaw control
|
||
Product introduction

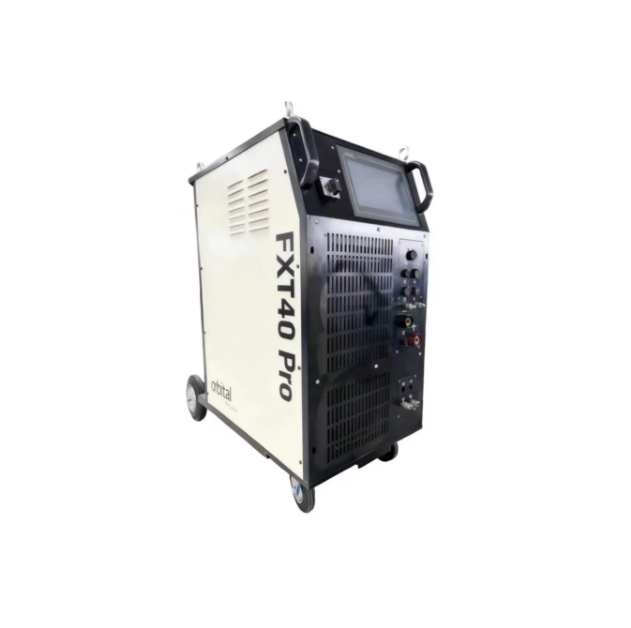

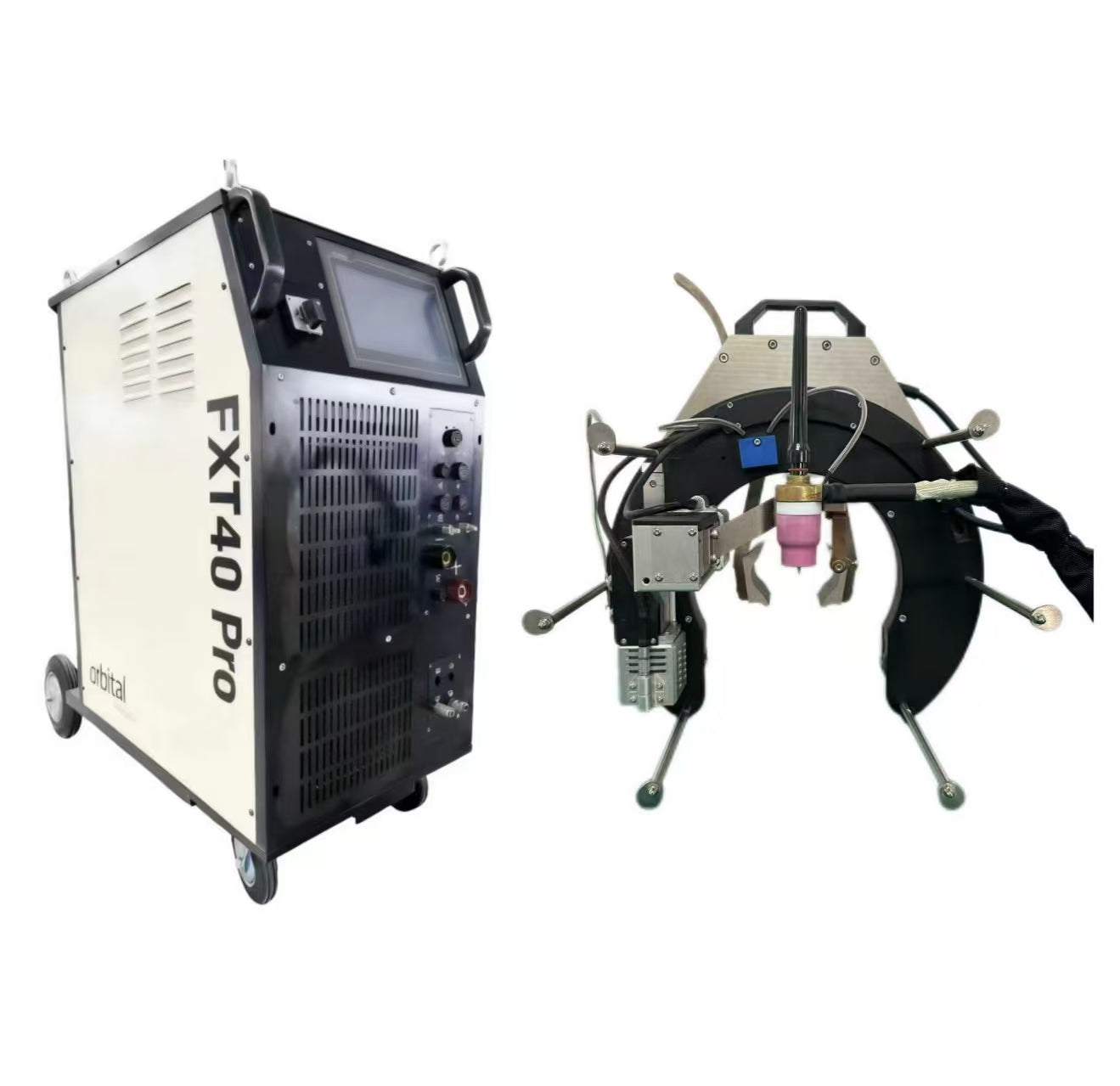

The FXT40 Pro inverter welding power supply consists of a PLC control system, an imported 400 inverter core, and a cooling water tank. The equipment is progressiveness, digital, easy to operate and reliable.
Chinese interface, only basic welding skills are required to be competent in operation, without the need for specialized personnel.
The programming interface is user-friendly, just like operating a mobile phone. You can input the desired parameter size by entering numbers.
Real time display of welding voltage, welding current, walking distance/degree, and control of welding stroke to achieve automatic
attenuation.
Accurately set the distance between the tungsten electrode and the workpiece, raise the tungsten electrode to the set value after touching the workpiece, and achieve high-frequency arc ignition.
Automatic fault diagnosis function, displaying error codes.
Modular design for easy maintenance and upkeep.
Comes with expert parameters and can store up to 50 programs.
Performance characteristic

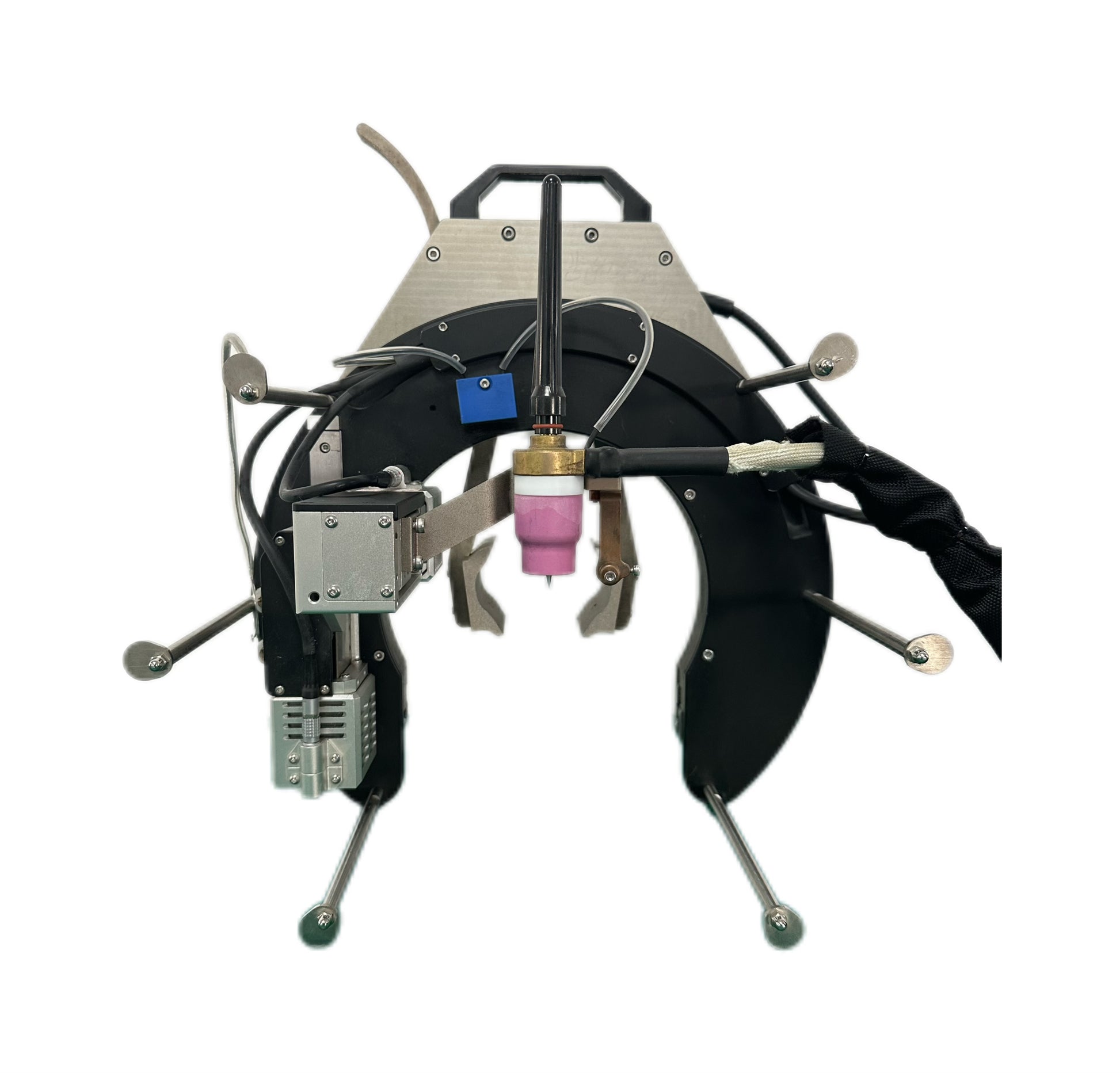

Open pipe and tube welding head
|
Welding gun Model
|
K76
|
K114
|
K168
|
K219
|
K273
|
K325
|
|
Welding Range(mm)
|
Φ20-Φ76
|
Φ25-Φ114
|
Φ60-Φ168
|
Φ114-Φ230
|
Φ133-Φ273
|
Φ159-Φ325
|
|
Maximum Thickness(mm)
|
≤10
|
≤12
|
≤12
|
≤12
|
≤12
|
≤12
|
|
Cooling method
|
Circulating water cooling
|
|||||
|
Protective Gas
|
Argon
|
|||||
|
Main distribution power
|
FXT40 Pro Full Position welding Power
|
|||||
|
Mainly weldable material
|
Carbonsteel, stainless sleel, titanium alloy, etc
|
|||||
|
Docking form
|
Straight pipe, elbow, tee
|
|||||
|
Groove form
|
V
|
V
|
V or U
|
V or U
|
V or U
|
V or U
|
Text block
Contact us for a quote
FAQ
-
What is the FXT40 Pro all-position pipeline automatic welding machine?
The FXT40 Pro is a professional-grade automatic pipeline welding system designed for all-position girth welding (flat, horizontal, and overhead). It features a Siemens S7-200 SMART PLC and AVC+OSC dual closed-loop control, making pipeline welding as simple as setting a navigation route. It is engineered to replace manual labor in demanding industries like petroleum, shipbuilding, and power energy.
-
How does the FXT40 Pro ensure weld quality in overhead and all-position welding?
The FXT40 Pro utilizes AVC (Automatic Arc Voltage Control) for real-time arc length tracking and OSC (Transverse Weaving) for precise bead formation. This combination allows for 360° automatic rotation without manual adjustment, ensuring a radiographic inspection pass rate of ≥98%, even in difficult overhead positions.
-
What pipe diameters and wall thicknesses can the FXT40 Pro weld?
The FXT40 Pro supports a wide range of pipe diameters from Φ20mm to Φ325mm through its modular K-series welding heads (K76 to K325). It is optimized for wall thicknesses between 2mm and 13mm, supporting both carbon steel and stainless steel with multi-pass welding capabilities.
-
What are the groove requirements for using the FXT40 Pro automatic welder?
For materials thicker than 2.5mm, a V-groove is required. For carbon steel, a single-side angle of ≥37° is recommended, while stainless steel requires ≥45°. The system handles fit-up gaps of 0-0.5mm and requires no root face for optimal penetration.
-
How much efficiency can be gained by switching from manual welding to the FXT40 Pro?
The FXT40 Pro increases welding efficiency by 40% to 60%, especially for thick-wall pipes requiring multi-pass welding. Its 8-zone intelligent programming allows complex multi-stage parameters to be completed in one operation, significantly reducing labor costs and human error.
-
Do I need a senior welder to operate the FXT40 Pro system?
No. One of the core value propositions of the FXT40 Pro is reducing dependence on highly skilled welders. With its "Automatic Programming" mode, an ordinary operator can start producing nuclear-grade quality welds after only 3 days of training. The system stores up to 50 groups of welding recipes for one-click recall.
-
Is the FXT40 Pro suitable for harsh industrial environments?
Yes, the FXT40 Pro is designed with an IP21 protection grade and operates reliably in temperatures from -10℃ to +40℃. It features a robust 400A industrial inverter core and a 15L circulating water cooling system to ensure continuous high-intensity work in shipyards and refineries.
-
What kind of after-sales support does Feiyide (FYID) provide for the FXT40 Pro?
We provide a 12-month whole-machine warranty and lifetime technical support. Our service commitment includes 7×18 hours online video support (English/Chinese) and a response time where common spare parts are shipped within 48 hours. For overseas customers, we offer remote diagnosis and video guidance to ensure zero-downtime operations.
