Case Study: Modernizing High-Pressure LPG & Natural Gas Skid Fabrication (India)

Published: April 2026  |  Category: Case Studies  |  Reading time: 8 min

Overview: Automating High-Pressure Gas Skid Fabrication in India

This case study documents how a leading Indian engineering firm — specializing in LPG and natural gas skid systems, vaporizers, and pressure regulating stations — replaced manual TIG welding with the FYID-Feiyide FXT40 Pro open-head orbital welding system to meet India's national energy safety codes on high-pressure piping manifolds.

The results: a 99.5% first-pass X-ray yield, 50% reduction in welding time per joint, and full operator proficiency in 3 days of training — on piping that previously required experienced manual TIG welders for every overhead and vertical pass.

1. Background: Zero-Tolerance Requirements in Natural Gas Infrastructure

Natural gas and LPG piping systems operate under conditions where a single weld failure is not a quality defect — it is a safety incident. Filtration skids, vaporizer manifolds, and pressure regulating stations in India's energy sector must meet rigorous national codes governing both pressure integrity and radiographic inspection standards.

The client's fabrication scope included complex piping manifolds with all-position requirements: flat (1G), vertical (3G), and overhead (4G) passes within the confined geometry of a skid frame. Carbon steel and stainless steel pipes in the Φ25 mm to Φ114 mm OD range, with wall thicknesses from 4 mm to 13 mm, required full-penetration groove welds with 100% X-ray and hydrostatic test coverage on every joint.

This combination — large-diameter heavy-wall pipe, all-position welding, confined skid geometry, and 100% non-destructive testing — defines one of the most demanding environments for manual TIG welding in industrial fabrication.

2. The Challenge: Fatigue, Rework, and Safety Risk in Manual TIG Operations

Before adopting FYID technology, the client's quality and operations teams had identified three persistent problems that were eroding project margins and timelines.

Weld inconsistency driven by operator fatigue

Manual GTAW on large-diameter pipe in overhead and vertical positions requires the welder to simultaneously control arc length, torch angle, travel speed, and filler wire feed while working against gravity. Sustained overhead welding — a physical demand that no amount of training fully eliminates — causes progressive fatigue within a single shift. The result was inconsistent penetration depth and bead profile, particularly in the 4G (overhead) and 3G (vertical) positions, which are also the most difficult to re-inspect and repair.

15% rework cost on 100% inspection scope

Every joint on the client's gas skid manifolds was subject to 100% radiographic (X-ray) inspection and hydrostatic pressure testing, as required by Indian energy safety codes. The client's historical first-pass rejection rate under manual TIG was sufficient to add 15% in additional labor and material cost to each project — the combined cost of grinding, re-welding, re-inspecting, and re-documenting failed joints. On high-pressure LPG systems where schedule and budget overruns delay client commissioning, this rework cost had direct commercial consequences.

Safety exposure in confined skid frames

Skid-mounted piping systems are fabricated within structural steel frames. The frame geometry restricts welder access, requiring contorted working positions for overhead and vertical passes. Certified welders working inside skid frames for extended periods face elevated ergonomic and safety risks. This access problem also slowed production: repositioning a manual welder between joints in a dense manifold layout adds non-productive time to every joint in the sequence.

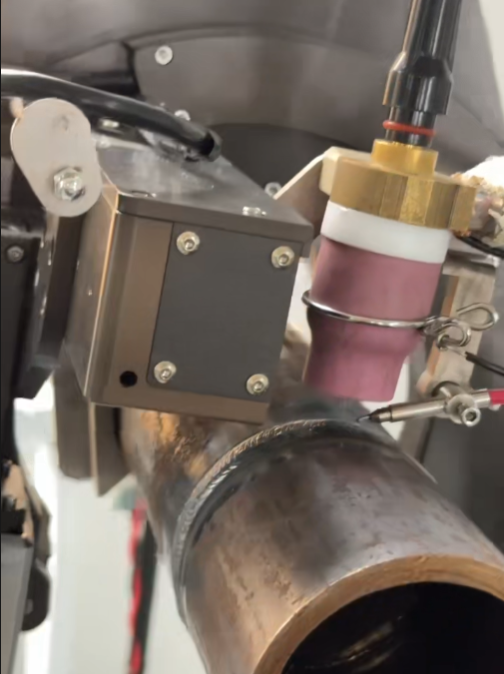

3. The FYID Solution: FXT40 Pro Power Source with K114 Open-Head Orbital Welder

After evaluating the client's pipe diameter range (Φ25 mm to Φ114 mm OD), wall thickness (4 mm to 13 mm), and all-position welding requirement, the engineering team specified the FYID FXT40 Pro digital welding power source paired with the K114 open-head orbital welding clamp.

The K114 open-head design was selected specifically because it clamps onto the pipe externally without requiring access to both pipe ends — a critical requirement for in-position manifold joints inside an assembled skid frame. The welding head's aluminum caliper construction keeps the weight manageable for repositioning between joints in confined spaces.

Siemens PLC control and 8-zone programming for all-position consistency

The FXT40 Pro uses a Siemens S7-200 SMART V3.0 PLC as its control core. Siemens industrial-grade signal processing was a specific client requirement given India's power grid conditions, where voltage fluctuation can affect arc stability on conventional inverter systems. The PLC's high-resolution signal processing maintains consistent output regardless of input voltage variation within ±10% of 380 V three-phase.

The 8-zone programming system divides the full 360° pipe circumference into independent welding zones, each with separately configurable current, travel speed, wire feed rate, and arc voltage. For a heavy-wall carbon steel joint requiring multi-pass welding, the technician programs different parameters for the flat (0°–45°), vertical-up (90°–135°), overhead (180°), and vertical-down (225°–315°) zones. This zone-by-zone parameter control replicates — and documents — the positional adjustments that an experienced manual welder would make instinctively. The system stores up to 50 complete welding programs for identical workpiece recall.

AVC automatic arc voltage control for uneven pipe surfaces

High-pressure gas piping in India's energy sector is often sourced from multiple suppliers and may exhibit moderate variation in outer diameter tolerance and surface condition. The FXT40 Pro's AVC (Automatic Arc Voltage Control) system monitors arc voltage in real time and adjusts torch standoff height continuously throughout the rotation cycle. When the welding head passes over a surface irregularity, AVC corrects torch height within milliseconds — maintaining the arc length and, therefore, the heat input that determines penetration depth. This eliminates the arc-length variation that is the primary source of inconsistent penetration in manual overhead welding.

OSC oscillation for wide cap welds on heavy-wall pipe

Heavy-wall pipe joints with V-groove preparations require a cover pass wide enough to bridge the groove opening and blend into the pipe surface. The FXT40 Pro's OSC (Oscillation) system provides programmable transverse weaving with independently adjustable left and right dwell times. For the client's heavy-wall sections, OSC delivered consistent cap weld width and edge tie-in across all positions — the overhead cap pass, historically the most difficult to execute manually, was produced to the same profile as the flat-position pass.

400 A output for high-ambient continuous production

India's industrial fabrication environments regularly operate at ambient temperatures of 35°C to 45°C. Welding power sources specified for 40°C ambient at rated duty cycle are a practical necessity, not a conservative specification. The FXT40 Pro delivers 315 A at 100% duty cycle and 400 A at 60% duty cycle at 40°C ambient. The torch head uses circulating water cooling with a 15-liter water tank. During the client's production runs — two shifts per day in a facility without air conditioning — the system did not experience a single thermal shutdown event.

4. Quantifiable Results

99.5% first-pass X-ray yield

On the first production batch following FXT40 Pro commissioning, the client's radiographic inspection results showed a 99.5% first-pass acceptance rate across all joints — flat, vertical, and overhead positions combined. The near-elimination of rejected joints removed the rework cycle that had previously consumed 15% of project labor and materials on every contract.

50% reduction in welding time per joint

Automated rotation and integrated wire feeding eliminated the manual repositioning time between passes and the interruptions caused by operator fatigue and rest requirements. The FXT40 Pro's 8-zone program executed each joint from arc start to arc termination without operator intervention, reducing cycle time per joint by 50% compared to the manual TIG baseline.

3-day operator training cycle

The FXT40 Pro's 10-inch color touchscreen with Chinese/English interface switching and automatic parameter generation — the operator inputs pipe diameter and wall thickness, and the system generates initial welding parameters — reduced the learning curve from years of manual TIG skill development to 3 days of system training. The client's existing production staff, without prior orbital welding experience, reached production-grade proficiency within this window.

5. Application Scope: Where the FXT40 Pro Fits in Energy Infrastructure Fabrication

The FXT40 Pro with K-series open-head orbital welders is suited to the following pipe fabrication contexts in the energy and EPC sector:

• Carbon steel and stainless steel pipe, Φ20 mm to Φ325 mm OD (K76 through K325 heads), wall thickness 2 mm to 13 mm
• All-position girth welding on pipe stationary, torch rotating — including overhead and vertical-down passes that are the highest-risk positions for manual fatigue
• Multi-pass welding on V-groove joints for wall thicknesses above 2.5 mm, using OSC cover pass and AVC arc tracking
• Applications requiring 100% radiographic or ultrasonic inspection, where first-pass yield directly determines project cost
• Skid-mounted and confined-space manifold fabrication where manual welder access is restricted by the structural frame

For tube-to-tubesheet applications in heat exchangers and boiler manifolds, the FXT40 Pro system can be paired with appropriate bore welding heads for internal tube seal welds — a separate configuration from the K-series open-head clamp used in this case study.

6. Technical Conclusion

The FYID FXT40 Pro system addressed the three core failure modes of manual TIG welding in high-pressure gas skid fabrication: positional inconsistency eliminated by 8-zone parameter programming and AVC arc tracking; rework cost reduced from 15% to below 1% by achieving 99.5% first-pass X-ray yield; and confined-space safety risk mitigated by removing the welder from the joint during the welding cycle.

For engineering firms and EPC contractors working in natural gas, LPG, and industrial pressure piping where every joint carries a 100% inspection requirement, the economic case for orbital GTAW automation is measurable at the project level — not just in equipment cost, but in the rework hours, inspection cycles, and schedule delays that manual welding generates at scale.

To review the full technical specification for the FXT40 Pro and K-series welding heads, including pipe diameter ranges for each K-head model and multi-pass programming parameters, contact FYID-Feiyide's applications engineering team.

Frequently Asked Questions

What pipe diameter range does the FXT40 Pro system cover?

The FXT40 Pro is compatible with K-series open-head orbital welding clamps from K76 to K325, covering pipe outer diameters from Φ20 mm to Φ325 mm. Wall thickness range is 2 mm to 13 mm for carbon steel and stainless steel.

Can the FXT40 Pro weld in overhead and vertical positions without operator adjustment?

Yes. The 8-zone programming system assigns independent welding parameters to each quadrant of the pipe circumference. AVC (Automatic Arc Voltage Control) maintains constant arc length as the torch rotates through overhead and vertical sections. The operator monitors the process but does not manually adjust parameters during the weld cycle.

What is the duty cycle of the FXT40 Pro in high-ambient environments?

The FXT40 Pro delivers 315 A at 100% duty cycle and 400 A at 60% duty cycle, both rated at 40°C ambient temperature. The torch head uses circulating water cooling with a 15-liter water tank, enabling sustained two-shift production without thermal shutdown in Indian industrial facility conditions.

How does the FXT40 Pro handle multi-pass welding on heavy-wall pipe?

Each of the 8 zones supports up to 8 independent welding stages, allowing separate parameter sets for root pass, fill passes, and cover pass within a single stored program. The OSC oscillation function provides programmable transverse weaving with adjustable dwell time on the left and right edges for consistent cover pass width and tie-in on V-groove joints.

Does the FXT40 Pro produce documentation suitable for radiographic inspection records?

Yes. The system logs current, voltage, travel speed, wire feed rate, and zone sequence for every weld cycle. An optional built-in printer produces weld parameter reports on demand. USB export supports unlimited archiving of weld records for X-ray inspection traceability, audit documentation, and PQR (Procedure Qualification Record) support.
