FYID Benchtop Micro Orbital TIG Welder for Semiconductor and Lab Tubing — Φ3 mm to Φ12 mm

Benchtop Micro Orbital TIG Welder for Semiconductor Gas Lines, Lab Instrumentation, and Biopharma Tubing — Φ3 mm to Φ12 mm, All-in-One Integrated Design

The FYID-Feiyide M12 Benchtop Micro Orbital Welding System is a fully integrated automatic orbital GTAW (TIG) welding station for thin-wall stainless steel, titanium, and high-purity alloy tube in the Φ3 mm to Φ12 mm outer diameter range. The power source, control system, and 2.2 L water-cooling tank are integrated into a single unit measuring 500 × 380 × 300 mm — a footprint that fits on a standard lab bench, inside a cleanroom equipment bay, or at a gas cabinet fabrication bench without a dedicated equipment layout.

This system addresses the specific welding challenge of micro-bore tube joints where manual TIG is technically impractical: at Φ3 mm to Φ6 mm tube OD with wall thicknesses below 0.5 mm, the heat input window between insufficient penetration and burn-through is too narrow to control manually with consistency. The M12 orbital head's pulse TIG control — with independently adjustable peak current, base current, frequency, and duty cycle — keeps heat input within the required window on every joint, producing repeatable silver-white oxidation-free welds that manual TIG cannot match at this scale.

For larger-diameter semiconductor UHP and pharmaceutical tubing from Φ6.35 mm to Φ168 mm, the FXT20 with C5–C170 enclosed heads covers the full range on the same power source platform.

M12 Benchtop System Specifications — Integrated Power Source and Micro Orbital Welding Head

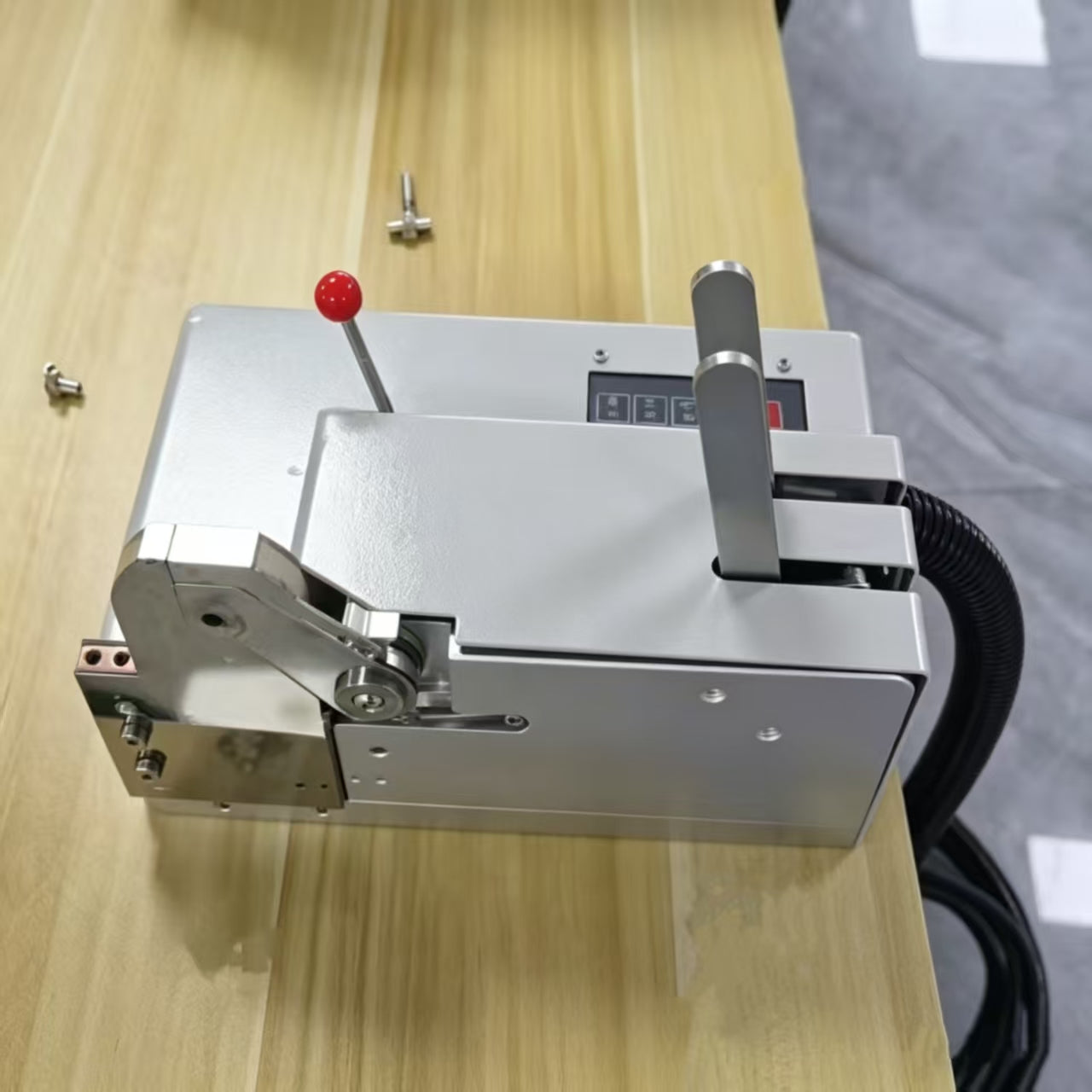

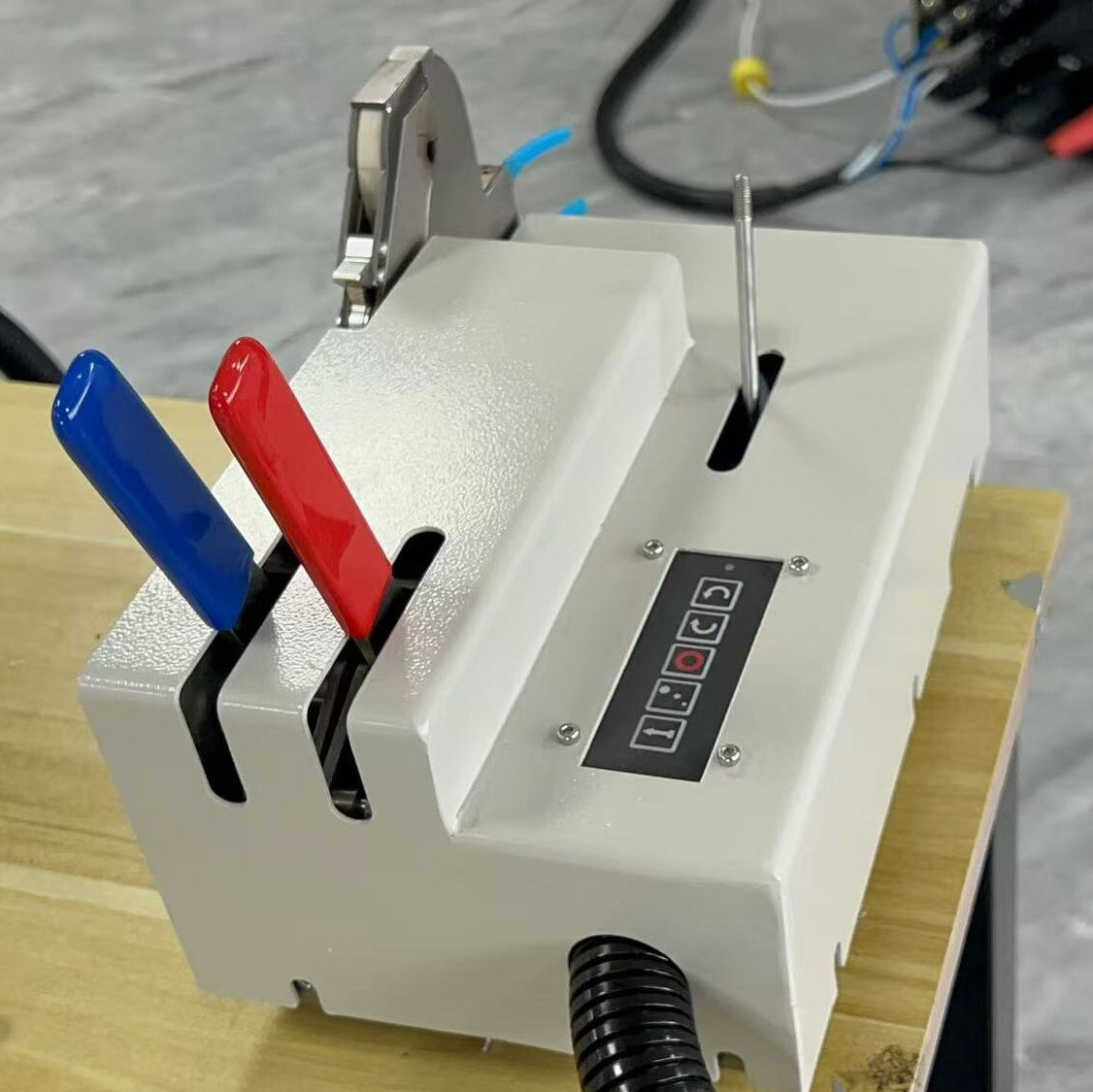

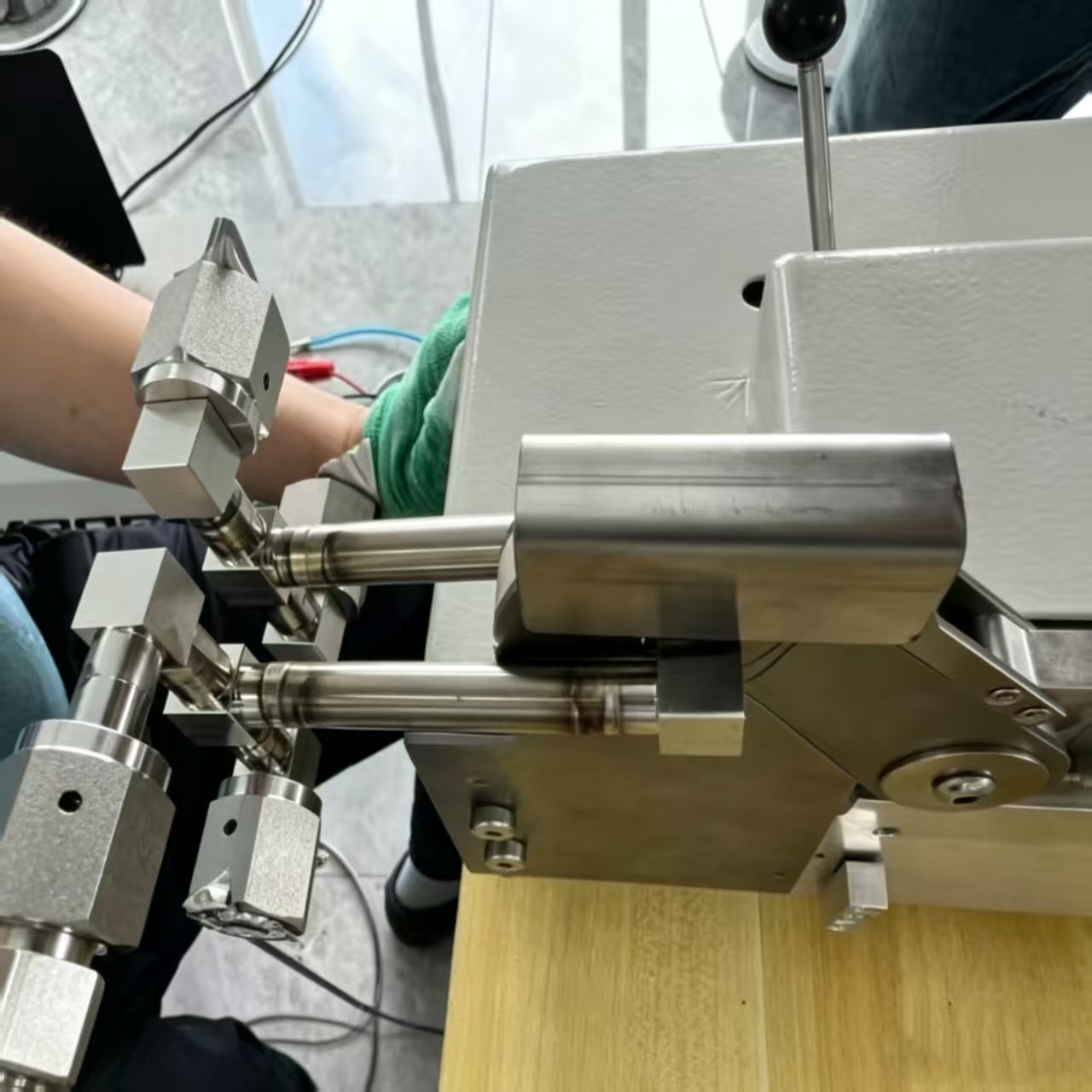

Integrated unit and welding head

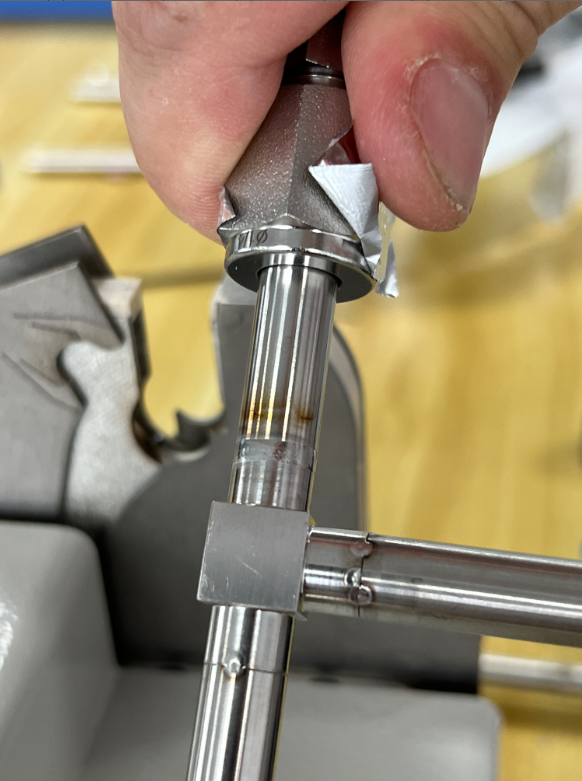

M12 welding head — tube diameter to axial clearance reference

Pulse TIG parameter control for micro-bore tube

At tube OD below Φ6 mm and wall thickness below 0.5 mm, DC pulse TIG is the only GTAW mode that provides sufficient heat input control to weld consistently without burn-through. The M12 system's pulse parameters — peak current, base current, pulse frequency (Hz), and pulse duty cycle (%) — are independently programmable per welding segment. The peak current melts the base metal; the base current allows partial solidification before the next peak, preventing heat accumulation. This on/off thermal cycling makes autogenous welding on Φ3 mm tube at 0.2 mm wall thickness achievable without filler wire and without the burn-through that a continuous DC arc produces at the same average current.

The Expert Parameter Library stores pre-qualified pulse programs indexed by tube OD and wall thickness. For tube dimensions already in the library, the operator selects the program and begins welding — no manual pulse parameter calculation is required.

Industry Applications for the M12 Benchtop Micro Orbital Welding System

Semiconductor Fabrication — Sub-Fab Gas Distribution and Instrument Tubing

Semiconductor fab gas delivery infrastructure operates on two scales: the primary UHP distribution system from the gas farm to the process tool, which uses Φ6.35 mm to Φ38 mm tube covered by the FXT20 C-Series enclosed heads; and the instrument tubing and sub-fab sampling lines, which use Φ3 mm to Φ12 mm tube connecting pressure transducers, mass flow controllers (MFCs), and valve manifold blocks (VMBs) to the gas distribution network. This instrument tubing carries the same purity requirements as the main gas lines — SEMI F20 particle and contamination limits apply at every joint — but joint count per tool bay is higher and physical access is more constrained.

Manual TIG welding on Φ3 mm to Φ6 mm 316L EP-grade stainless steel instrument tube is not consistently achievable at the tolerances SEMI F20 requires: arc length variation at this scale produces joint-to-joint surface finish variation that no manual welder can control. The M12 system's fixed head geometry and pulse TIG control eliminate the arc length variable entirely, producing SEMI-compliant silver-white weld interiors on every joint in the batch. The 500 × 380 × 300 mm integrated footprint allows the unit to be positioned at the gas cabinet assembly bench without dedicated floor space. The 200-group parameter library stores qualified programs for every instrument tubing specification across a fab gas system, recallable in a single touchscreen step between jobs.

Compatible tube: EP-grade 316L stainless steel, Φ3 mm – Φ12 mm OD, wall 0.2 mm – 1.5 mm. Relevant standards: SEMI F20, SEMI F57, SEMI C10.

Biopharmaceutical and Laboratory — Small-Bore Process Tubing and Analytical Instrument Lines

Biopharmaceutical manufacturing and research facilities use small-bore stainless steel tubing in two contexts suited to the M12 system. First, analytical instrument sampling lines — connecting inline process analyzers (UV, Raman, pH, dissolved oxygen sensors) to process streams in bioreactors and chromatography systems — typically use Φ3 mm to Φ6 mm 316L tube with surface finish requirements matching the ASME BPE process-contact surface specification. These lines are welded in small quantities per project but require the same weld documentation as main process piping because they are product-contact surfaces under GMP.

Second, R&D laboratories building custom fluid handling systems for cell culture, fermentation, or API synthesis development require reliable autogenous welds on small-diameter stainless and titanium tube that lab technicians cannot produce manually. The M12 system's benchtop form factor, one-day operator training requirement, and pre-loaded parameter library make it deployable in an R&D environment without a dedicated welding technician or facility modification. The built-in thermal printer generates per-weld documentation satisfying FDA 21 CFR Part 11 requirements for laboratory instrument qualification. For larger-diameter process piping in the same facility — CIP/SIP headers, WFI loops, product transfer lines — the FXT20 with C40–C120 enclosed heads handles Φ25 mm to Φ114 mm tube on the same power source architecture.

Compatible tube: 316L stainless steel, titanium Grade 2. Tube OD Φ3 mm – Φ12 mm. Relevant standards: ASME BPE, FDA 21 CFR Part 11, ISO 14644.

Photovoltaic Manufacturing — High-Purity Process Gas and Chemical Delivery Lines

Photovoltaic cell manufacturing uses CVD, PECVD, and diffusion furnace processes that require high-purity delivery of silane (SiH₄), ammonia (NH₃), phosphine (PH₃), and specialty dopant gases through stainless steel instrument tubing in the Φ3 mm to Φ12 mm range. Weld quality directly affects process gas purity: oxidized or porous weld interiors generate particle contamination and moisture outgassing that affect cell efficiency and process repeatability across a production run.

PV manufacturing facilities are large-footprint, high-throughput environments where instrument tubing installation is performed by facility contractors rather than specialized semiconductor piping crews. The M12 system's one-day operator training requirement, integrated design requiring no external cooling unit, and ±20% grid voltage tolerance make it deployable by instrument technicians in the production facility without the infrastructure support that conventional split-type orbital systems require. The robotic arm integration option supports automated tubing sub-assembly production for high-volume PV module manufacturing lines where instrument tubing harness fabrication is a throughput bottleneck.

Compatible tube: 316L stainless steel, Φ3 mm – Φ12 mm OD. Application: CVD/PECVD process gas instrument lines, chemical delivery tubing, diffusion furnace gas manifolds.

Nuclear Power — Instrumentation and Control System Tubing in Safety-Related Service

Nuclear power plant I&C systems use small-bore stainless steel tubing — typically Φ6 mm to Φ12 mm in 316L or 304L — for pressure, temperature, and flow measurement impulse lines connecting primary-system instruments to I&C panels. These joints are classified as safety-related components under 10 CFR 50 Appendix B and must be fabricated under a nuclear quality assurance program: WPS/PQR qualification under ASME Section IX, per-weld parameter records, and material traceability from heat number to installed location.

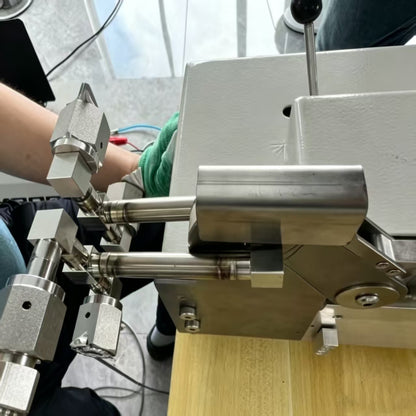

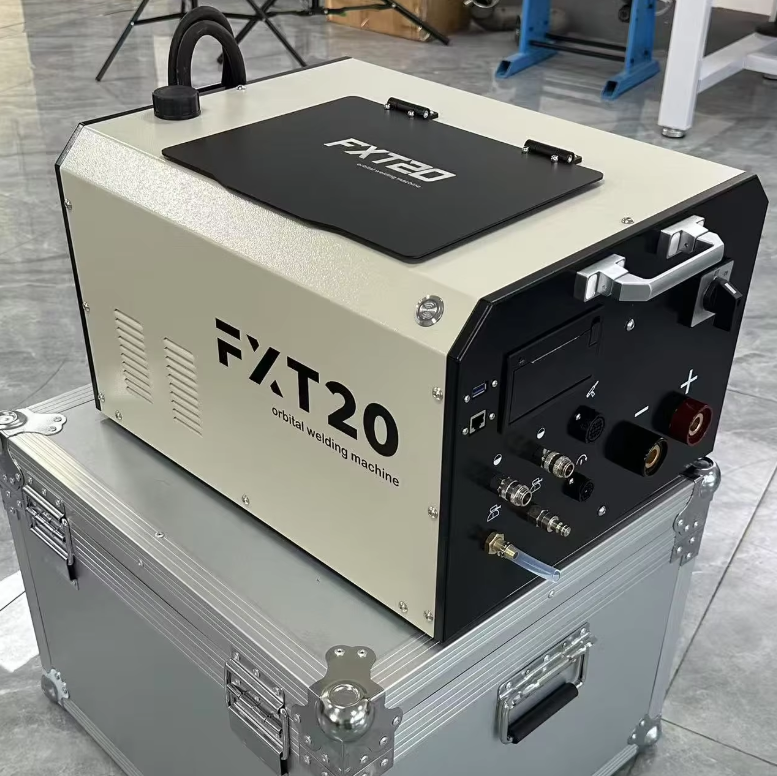

The M12 system's FXT20 power source logs current, arc voltage, rotation speed, and timestamp for every weld cycle, with printed weld reports on demand and USB data export for archiving. This per-weld documentation chain satisfies 10 CFR 50 Appendix B and NQA-1 traceability requirements for safety-related small-bore tubing fabrication. The ±20% grid voltage tolerance addresses a specific operational requirement for nuclear plant environments where power quality at the instrument installation location may not meet the tighter tolerance of conventional orbital welding supplies. For nuclear auxiliary piping in larger diameters, the FXT40 Pro with K-series heads covers Φ20 mm to Φ325 mm pipe in the same documentation framework.

Compatible tube: 316L, 304L stainless steel. Tube OD Φ6 mm – Φ12 mm. Relevant standards: ASME Section IX, 10 CFR 50 Appendix B, NQA-1, RCC-M (French nuclear).

M12 Benchtop Micro Orbital Welder — Frequently Asked Questions

What tube diameter range does the M12 system cover, and how does it differ from the FXT20 C-Series?

The M12 benchtop system covers tube outer diameters from Φ3 mm to Φ12 mm — the micro-bore instrument tubing range used in semiconductor sub-fab gas distribution, analytical instrument lines, laboratory fluid handling, and nuclear I&C impulse tubing. The integrated 500 × 380 × 300 mm unit with built-in 2.2 L water cooling is optimized for bench-mounted operation at maximum 30 A average weld current.

The FXT20 with C5–C170 enclosed heads covers Φ6.35 mm to Φ168 mm tube at up to 200 A output, using a separate power source and welding head for on-site cleanroom and field installation work. For tube OD above Φ12 mm in UHP, pharmaceutical, and food applications, the FXT20 C-Series is the correct system.

Why is pulse TIG necessary for Φ3 mm to Φ6 mm micro-bore tube welding?

At Φ3 mm to Φ6 mm OD with wall thickness below 0.5 mm, continuous DC TIG arc causes heat accumulation and burn-through before the weld reaches full circumference. Pulse TIG alternates between a high peak current (melting) and a low base current (partial solidification), controlling average heat input per unit weld length. The M12 system's pulse parameters — peak current, base current, frequency (Hz), and duty cycle (%) — are independently programmable per weld segment and stored in the 200-group Expert Parameter Library indexed by tube OD and wall thickness.

Does the M12 system require an external water chiller or cooling unit?

No. The 2.2 L water-cooling tank is integrated inside the 500 × 380 × 300 mm enclosure. The M12 deploys with a single 220 V AC single-phase power connection and an argon supply — no external chiller, cooling tower, or separate water circulation unit is required. This is the primary practical difference from split-type micro orbital welding configurations, which require separate power source, head, and cooling units.

What weld documentation does the M12 produce for SEMI, GMP, and nuclear audits?

The built-in maintenance-free thermal printer generates a weld report per joint on demand or automatically after each cycle, including: program number, tube OD, current profile (peak and base values per segment), pulse parameters, arc voltage, rotation speed, pre-flow and post-flow times, and timestamp. USB export enables unlimited archiving. This output satisfies: SEMI F20 weld traceability for semiconductor UHP instrument lines, ASME BPE and FDA 21 CFR Part 11 records for pharmaceutical analytical tubing, and 10 CFR 50 Appendix B / NQA-1 per-weld documentation for nuclear I&C safety-related tubing.

Can the M12 system be integrated into an automated production line?

Yes. The M12 includes a robotic arm integration interface allowing the welding head to be mounted on a robotic arm for automated tube sub-assembly production. The robot positions tube joints sequentially and triggers the weld cycle; the FXT20 control system manages all parameters and documentation. This configuration is used in high-volume photovoltaic instrument tubing harness fabrication and semiconductor gas cabinet sub-assembly production where manual repositioning between joints is a throughput bottleneck. Contact FYID-Feiyide's applications engineering team for robotic arm integration specifications and communication protocol details.

What is the minimum axial clearance the M12 welding head requires to access a joint?

Minimum axial net space (clearance along the tube axis between the joint and the nearest adjacent component): 12.2 mm for tube OD up to Φ6.8 mm; 26.4 mm for tube OD from Φ10 mm to Φ12 mm. For instrument tubing in gas cabinets or VMB assemblies where axial clearance is constrained, provide the layout drawing to FYID-Feiyide's applications team for accessibility confirmation before ordering.

For tube OD and wall thickness confirmation, Expert Parameter Library coverage verification, or robotic arm integration specifications, contact FYID-Feiyide's applications engineering team. The M12 welding head is available as part of the complete integrated benchtop system — it is not offered separately from the FXT20 integrated power source in this configuration.
