The 2026 AI Data Center Build-Out and the Orbital Welding Procurement Bottleneck

Global AI data center construction spend reached an estimated $80 billion to $100 billion in 2025, with hyperscale operators — cloud providers, AI model training facilities, and colocation operators serving GPU cluster tenants — committing to multi-year build programmes through 2028 and beyond. The common infrastructure constraint across all of these projects is direct liquid cooling (DLC): air cooling cannot manage the thermal density of NVIDIA H100 and H200 GPU clusters at 40 kW to 120 kW per rack, and the transition from air to liquid cooling requires fabricating and installing hundreds to thousands of stainless steel tube connections per data hall.

These connections — Φ6.35 mm to Φ38.1 mm 316L stainless steel tube in DLC manifolds, cold plate supply and return headers, and cooling distribution unit (CDU) internal piping — require autogenous orbital TIG welding to achieve the zero-oxidation weld interiors and zero-leak performance that liquid cooling in contact with live GPU hardware demands. A single weld failure in a rack-level DLC manifold causes immediate rack shutdown and potential permanent hardware damage from coolant contact with active electronics.

The procurement bottleneck in 2026 is not welding process knowledge — orbital TIG is well understood — it is equipment availability. Projects operating on aggressive timelines (data hall commissioning targets of 12 to 24 weeks from site mobilisation) cannot accommodate the lead times typical of traditional premium-tier orbital welding equipment, which ranges from 8 to 20 weeks for standard configurations. This mismatch between project schedule requirements and equipment lead time has driven procurement managers to re-evaluate the orbital welding equipment market, specifically seeking systems that can be delivered within the first two weeks of a project and deployed immediately on arrival.

The Two Tiers of the Orbital Welding Equipment Market

The global orbital welding equipment market divides broadly into two tiers that have historically served different customer segments with limited overlap.

Traditional premium-tier systems

The traditional premium tier — dominated by established European manufacturers with decades of installed base in semiconductor fabrication, nuclear power, and aerospace — is characterised by engineering precision at the extreme end of the tolerance range, comprehensive application support from in-country service networks, and long equipment lifecycles of 15 to 25 years. These systems are specified for applications where the cost of weld failure is measured in tens of millions of dollars per event — nuclear primary loop piping, aerospace structural tube, pharmaceutical facility qualification projects where a failed validation costs six months and seven-figure rework.

The procurement model for these systems reflects their application context: extended lead times (8 to 20 weeks for standard configurations, longer for application-specific modifications), high capital cost ($35,000 to $120,000 per system depending on configuration and head set), and application engineering support that is bundled into the purchase price and includes on-site commissioning, operator qualification, and WPS development. For a nuclear auxiliary piping project or a semiconductor fab UHP gas line installation with a five-year construction schedule, this procurement model is appropriate — the lead time is absorbed into the project schedule and the capital cost is justified by the risk profile of the application.

Compact digital systems — the emerging tier

The second tier — represented by the FYID FXT20 and comparable systems from Asian manufacturers — emerged from a different application context: high-volume sanitary tube installation in food processing, pharmaceutical facility construction, and semiconductor sub-fab gas line work, where the volume of joints (hundreds to thousands per project), the project timeline (weeks to months rather than years), and the capital budget per system determine whether automated orbital welding is economically viable relative to manual TIG.

These systems are characterised by: standard-inventory stock availability with shipping timelines of 5 to 10 working days; capital cost of $7,000 to $15,000 per complete system including head set; digital control interfaces (10-inch touchscreen, Expert Parameter Library, built-in printer) that reduce operator training to one day; and technical specifications — 5 A minimum arc current, 100% duty cycle at 155 A, enclosed argon chamber with integrated bore protection — that satisfy the process requirements of UHP semiconductor, ASME BPE pharmaceutical, and 3-A sanitary tube welding without the engineering overhead of the premium-tier systems.

The weld quality metric that matters for DLC liquid cooling piping — silver-white, oxidation-free internal surface on 316L stainless steel, zero-leak hydrostatic performance — is achievable from both tiers. The difference is in the procurement model, not in the weld output for this application.

Why AI Data Center Liquid Cooling Projects Are Structurally Incompatible with Premium-Tier Lead Times

The AI infrastructure commissioning timeline

A hyperscale AI data hall construction project — from site preparation to first GPU cluster power-on — operates on a schedule that is compressed relative to conventional data center construction by the urgency of AI compute deployment. Typical milestones for a 10 MW to 40 MW AI data hall in 2025 to 2026 are: civil construction and power infrastructure, 16 to 24 weeks; mechanical and electrical systems including DLC piping, 8 to 14 weeks (parallel with civil construction); rack installation and liquid cooling commissioning, 4 to 6 weeks; GPU cluster installation and testing, 2 to 4 weeks. Total schedule from ground break to first production compute: 26 to 40 weeks.

The DLC piping installation phase — the 8 to 14 week mechanical window — is when orbital welding equipment is required on site. If equipment lead time is 8 to 20 weeks and the project schedule requires equipment on site in week 8 from contract award, procurement must occur before the project scope is fully defined. In practice, AI data center projects frequently modify DLC piping layout as server rack specifications change during the design development phase — a common occurrence when GPU hardware configurations are revised between project award and equipment procurement. Premium-tier systems with 12-plus-week lead times cannot accommodate scope changes mid-delivery; the system ordered in week 1 is the system that arrives in week 14, regardless of whether the project scope changed in week 6.

The multi-crew scaling requirement

A 10 MW AI data hall with 250 racks at 40 kW per rack requires approximately 1,500 to 3,000 stainless steel tube weld joints in the DLC distribution system — manifold connections, CDU internal piping, and rack-level supply and return connections — depending on the DLC architecture. At an output rate of 50 to 80 joints per crew per day with an orbital welding system, completing 2,000 joints in the 8 to 14 week mechanical window requires 3 to 5 concurrent welding crews. At a capital cost of $7,000 to $12,000 per FYID FXT20 system, equipping 4 concurrent crews costs $28,000 to $48,000. At a capital cost of $35,000 to $65,000 per premium-tier system, equipping 4 concurrent crews costs $140,000 to $260,000 — and requires 4 concurrent orders each with 8 to 20 week lead times, making simultaneous deployment impossible on a 10-week mechanical schedule.

The economics of multi-crew scaling are the primary driver of the FYID FXT20's adoption in AI data center DLC piping. The capital cost differential per system allows procurement managers to deploy 4 to 8 FYID systems for the capital cost of 1 to 2 premium-tier systems — increasing concurrent weld output by 4 to 8 times while staying within the same capital budget line.

Technical Specification Comparison: What Matters for DLC Liquid Cooling Piping

For AI data center DLC piping in 316L stainless steel at Φ6.35 mm to Φ38.1 mm OD and 0.89 mm to 1.65 mm wall thickness, the relevant technical specifications are a subset of the full orbital welding system capability envelope. The following table identifies the specifications that directly determine weld quality in this application and compares the FYID FXT20 against the general specification profile of traditional premium-tier systems.

For the DLC piping application specifically, the technical specifications in the rows above the delivery lead time and capital cost rows are equivalent between the two tiers — both produce silver-white, zero-oxidation weld interiors on 316L stainless at the DLC tube dimensions. The differentiating variables are the procurement variables: lead time and capital cost per system. These determine whether multi-crew parallel deployment is feasible within the AI data center project schedule and capital budget.

The FXT20 Deployment Model for AI Data Center DLC Piping Projects

Standard DLC piping configuration: FXT20 + C10 and C40 heads

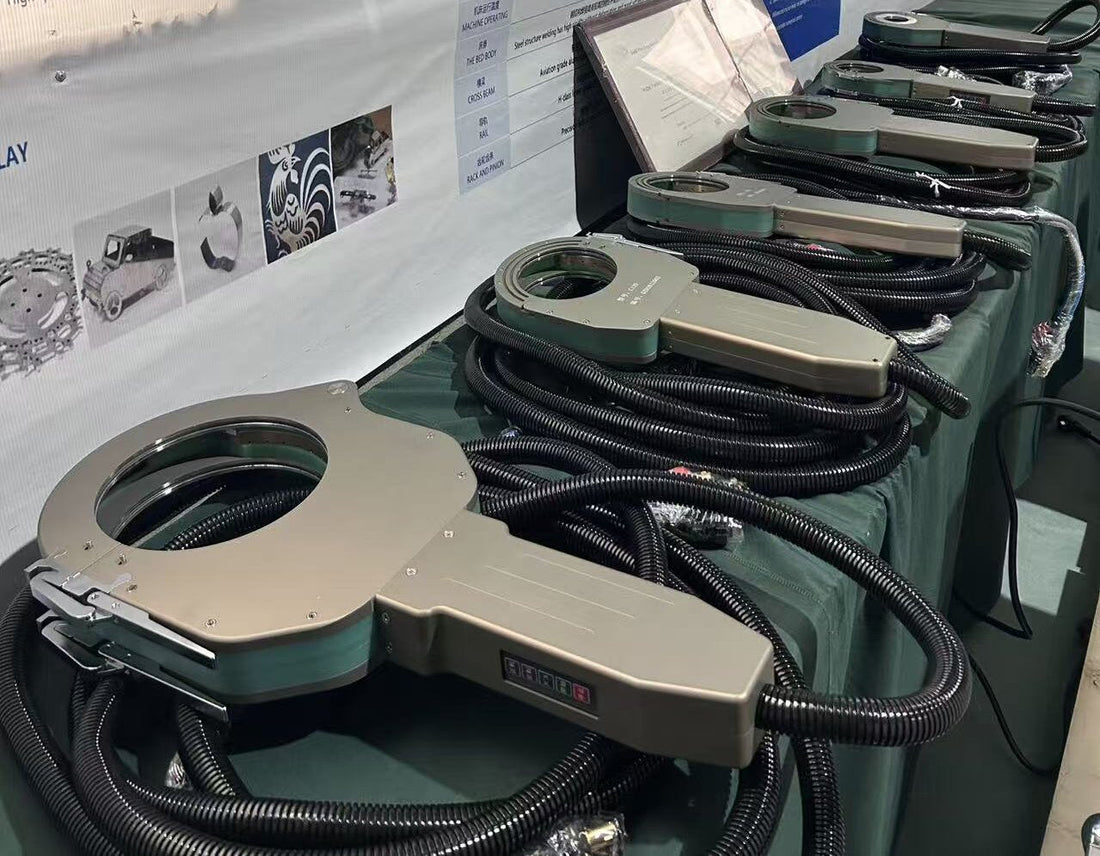

For AI data center DLC loop piping in the Φ6.35 mm to Φ38.1 mm range — the primary tube size range for rack-level DLC manifolds and CDU internal piping — the FXT20 with C10 (Φ6.35 mm – Φ25.4 mm) and C40 (Φ6.35 mm – Φ38.1 mm) heads covers the full standard DLC tube range from one power source. One power source and two heads constitutes a complete deployment kit for one welding crew. Four kits — four FXT20 power sources, four C10 heads, four C40 heads — equip four concurrent crews for parallel deployment across a large data hall, all shipped from stock within one week of purchase order.

U-bend manifold joints: FXT20 Pro-C + C12/C16 heads

For U-bend tube socket joints in CDU heat exchanger tube bundles and rack-level cooling manifold return bends — the "tube-in-tube" socket weld geometry specific to U-bend tube configurations — the FYID FXT20 Pro-C with C12 and C16 U-bend heads is the dedicated system. This system covers tube OD up to Φ16 mm at combined wall thickness ≤1.6 mm, with full closed-loop servo rotation and dual-channel integrated argon — the same process requirements as standard DLC loop piping, applied to the socket joint geometry that straight-tube orbital heads cannot reach. Standard delivery: 5 to 10 working days from stock.

From delivery to first production weld

The FXT20 ships in dual aviation-grade aluminium protective cases — waterproof, shockproof, and rated for sea or air freight transit. The standard packing list includes every component required for the first production weld: tungsten electrode grinder, argon gas connection hose, cooling water hose, conversion plug, gas hose fittings, and the full collet fixture set for the ordered head models. Setup on arrival — power source installation, cooling circuit fill with deionised water, argon supply connection, and head installation — takes approximately 20 to 25 minutes for a first-time setup. For crews that have received one day of FXT20 training before project mobilisation, the system is in production within 30 minutes of arriving at the project site.

Procurement Decision Framework for DLC Piping Orbital Welding Systems in 2026

The decision between system tiers for AI data center DLC piping should be made on three criteria evaluated in sequence.

Criterion 1 — Project schedule: can the lead time be absorbed?

If the mechanical installation window begins within 8 weeks of contract award, traditional premium-tier lead times of 8 to 20 weeks are incompatible with project schedule requirements. Equipment must be ordered before the project begins — which requires specifying a standard configuration without project-specific modifications, limiting flexibility if the scope changes during design development. The FYID FXT20's 5-to-10-working-day delivery allows procurement within the first week of the mechanical installation phase, after the piping layout is finalised.

Criterion 2 — Crew count: how many parallel systems are required?

Calculate the required joint count for the data hall DLC piping scope, divide by the achievable joint count per crew per day (50 to 80 joints for 316L stainless in the Φ6.35 mm to Φ38.1 mm range), and divide by the available days in the mechanical installation window. If the result is more than 2 concurrent crews, evaluate the total capital cost at each tier. For 4 or more concurrent crews, the capital cost differential between tiers is typically $100,000 to $300,000 — a procurement decision that requires approval at a level above the project procurement manager in most contracting organisations.

Criterion 3 — Application risk profile: does the premium tier's risk mitigation justify the cost and lead time?

For AI data center DLC piping in 316L stainless at the standard tube dimensions, the weld quality output of both tiers is equivalent — silver-white bore, zero-leak hydrostatic performance. The premium tier's value is in application engineering support, in-country service network, and long-term equipment lifecycle — relevant for permanent plant installations with 20-year service lives. For a data center DLC system where the piping is installed during construction and is not routinely modified thereafter, and where the contractor's obligation is limited to installation quality at handover, the long-term support premium may not be warranted for this specific application.

Frequently Asked Questions — Orbital Welding for AI Data Center Liquid Cooling in 2026

What tube specifications are standard in AI data center DLC piping, and what orbital welding system covers them?

Standard DLC loop piping for AI GPU clusters uses 316L stainless steel tube in the Φ6.35 mm to Φ38.1 mm OD range (¼" to 1½"), wall thickness 0.89 mm to 1.65 mm (0.035" to 0.065" wall per ASTM A269). The FYID FXT20 with C10 (Φ6.35 mm – Φ25.4 mm) and C40 (Φ6.35 mm – Φ38.1 mm) heads covers the full standard DLC tube range from one power source. For U-bend socket joints in CDU heat exchanger tube bundles, the FXT20 Pro-C with C12 and C16 heads covers tube OD up to Φ16 mm at combined wall thickness ≤1.6 mm.

Why does orbital TIG welding matter for DLC piping rather than press-fit or brazing connections?

Press-fit and push-to-connect fittings used in commercial building HVAC cannot maintain zero-leak performance at the 1.5 MPa to 4 MPa operating pressures of high-density AI server DLC systems under the thermal cycling from server load variation (cold plate temperature swings of 10°C to 30°C per load cycle, at cycling rates of seconds to minutes). Brazing on 316L stainless introduces flux residue into the cooling circuit that deposits on GPU cold plate micro-channels, degrading thermal performance over 6 to 18 months of operation. Orbital TIG autogenous welding produces a metallurgically bonded joint with base-metal strength, no flux residue, and zero-oxidation bore surface — the only joint method that satisfies all three performance requirements simultaneously.

What is the actual output rate for an FXT20 crew on DLC stainless tube piping, and how is this calculated?

For 316L stainless tube at Φ25.4 mm (1") OD and 1.65 mm wall — a representative mid-range DLC tube specification — the FXT20 weld cycle time is approximately 75 seconds from arc initiation to post-flow completion. Adding fit-up time (tube cutting, end face preparation, and joint assembly): approximately 4 to 6 minutes per joint for an experienced two-person crew. Total time per joint including setup, welding, weld report filing, and repositioning: approximately 8 to 10 minutes. At this rate, a two-person crew achieves 50 to 70 joints per 8-hour shift. For smaller tube (Φ12.7 mm, 0.89 mm wall, cycle time approximately 45 seconds), the rate increases to 70 to 90 joints per shift. For larger tube (Φ38.1 mm, 1.65 mm wall, cycle time approximately 100 seconds), the rate is 40 to 55 joints per shift.

How does the FXT20's weld documentation satisfy data center commissioning requirements?

AI data center DLC system commissioning typically requires: pressure test records at 1.5 times MAWP for the complete piping system; per-section leak test records before rack installation; and a as-built piping documentation package including weld records for warranty coverage of the DLC equipment (CDUs, manifolds, cold plates). The FXT20's built-in printer generates a per-joint weld report — current profile, travel speed, arc voltage, timestamp, and anomaly flag — that populates the weld record section of the commissioning documentation package. Weld reports are filed by section reference number and included in the handover documentation. For data center operators with ISO 9001-certified facilities management systems, the FXT20 weld log satisfies Clause 8.5.2 identification and traceability requirements for the installed piping system.

What is the total cost to equip four concurrent welding crews for a large AI data hall DLC piping project?

A four-crew deployment for a 10 MW to 40 MW AI data hall DLC piping project — covering the Φ6.35 mm to Φ38.1 mm tube range — requires: 4 × FXT20 power sources, 4 × C10 heads, 4 × C40 heads. At FYID list pricing, the total capital cost for four complete crew kits is approximately $28,000 to $48,000, delivered within 5 to 10 working days of purchase order. Consumable cost per joint (argon, tungsten electrode wear, printer paper) is approximately $0.30 to $0.80 depending on tube diameter and argon cylinder local pricing. For a 2,000-joint project scope, total consumable cost is approximately $600 to $1,600 across the full scope.
