U-Bend Orbital Welding Throughput: Joints Per Shift for AI Liquid Cooling Production

Category: Industry Insights & ROI  |  Applies to: FYID FXT20 Pro-C C12 U-Bend Orbital Welding System  |  Published: 2026  |  Reading time: 9 min

Why Throughput per Dollar of CAPEX Is the Correct Metric for AI Liquid Cooling U-Bend Production

In AI data center direct liquid cooling (DLC) manifold fabrication, U-bend tube joints — circumferential socket welds connecting 12 mm stainless steel return bends to straight tube headers — are the highest-volume weld type per cooling loop assembly. A single rack-level DLC manifold for a 40 kW GPU cluster may contain 20 to 48 U-bend joints. A 10 MW data hall with 250 racks requires 5,000 to 12,000 U-bend joints in the manifold pre-fabrication scope alone, before CDU internal piping and facility distribution header connections are counted.

At this production scale, the procurement question for U-bend orbital welding equipment is not "which system has the highest single-unit performance?" It is "which system configuration — single unit or multiple units — delivers the target daily joint count within the project's capital expenditure budget and deployment timeline?" These are different questions with different answers.

A system with a 40% faster cycle time per joint and a 5× higher capital cost per unit does not deliver 40% more output per dollar of CAPEX — it delivers significantly less, because the capital that would have purchased one premium-tier unit could instead have purchased four or five compact units running in parallel, each producing output independently. This guide works through the throughput mathematics for 12 mm 316L stainless U-bend production, compares single-unit and multi-unit deployment economics, and identifies the system configuration that maximises joints per shift per dollar of capital expenditure for AI data center DLC manifold fabrication.

The Production Parameters: 12 mm 316L Stainless U-Bend Orbital Welding

Joint specification

The reference joint for this analysis is: 316L stainless steel, Φ12 mm OD straight tube, combined socket wall thickness ≤1.6 mm (0.8 mm U-bend wall + 0.8 mm straight tube wall), autogenous orbital TIG (no filler wire), socket insertion depth ≥8 mm, zero-gap fit-up, 99.999% argon shielding. This specification is representative of DLC manifold U-bend joints for AI server rack cooling in 2025 to 2026 installations, meeting both the structural requirements of ASME Section VIII and the internal cleanliness requirements (silver-white, zero-oxidation bore) for coolant contact with GPU cold plate micro-channels.

Weld cycle time components

The total time per U-bend joint in a production environment consists of five sequential operations, each with a measurable duration that is fixed by physics and process requirements — not by operator skill:

Pre-flow purge: The FXT20 Pro-C's pre-flow timer delivers argon to the outer weld zone and the tube bore before arc initiation. For a Φ12 mm tube at 36 mm extension height, the bore volume is approximately 4 cm³; at 3 L/min inner bore flow rate, full displacement takes under 0.1 seconds, but the standard 3-second pre-flow provides a conservative safety margin for gas line dead volume. Pre-flow time: 3 to 5 seconds.

Arc initiation and ramp-up: High-frequency arc initiation at 5 A minimum current, ramp to steady-state current over 2 to 4 seconds. Ramp-up time: 2 to 4 seconds.

Steady-state weld rotation: At 12 mm OD, the circumference is approximately 37.7 mm. At a typical travel speed of 25 mm/min to 35 mm/min for thin-wall 316L at this OD, one full rotation takes approximately 65 to 90 seconds. Including a 10% to 15% overlap at the arc termination point: total rotation time approximately 70 to 100 seconds.

Current decay and arc termination: Programmed current decay over 3 to 6 seconds to prevent crater formation at the arc termination point. Decay time: 3 to 6 seconds.

Post-flow: Argon coverage maintained after arc termination until the metal cools below 400°C. At 0.8 mm wall, cooling to 400°C takes approximately 8 to 12 seconds. Post-flow time: 10 to 15 seconds.

Total weld cycle time (arc-on to head-ready-to-remove): approximately 88 to 130 seconds — call it 90 to 130 seconds depending on program parameters.

Inter-joint time components

Between weld cycles, the operator performs four tasks: remove the C12 head from the completed joint (elastic collet release, approximately 15 seconds); position and clamp the head on the next joint (insert, lever, lock — target 30 seconds per the C12 specification, achievable with a practised operator); select the program if the tube specification changes (one touchscreen step, approximately 10 seconds; zero additional time if the specification is unchanged); and file the printed weld report by joint number (approximately 20 to 30 seconds including writing the joint ID on the report). Total inter-joint time: approximately 75 to 85 seconds for a practised operator on a uniform specification batch.

Total time per joint (weld cycle + inter-joint): approximately 165 to 215 seconds — approximately 2.75 to 3.6 minutes per joint. In a continuous production environment with no interruptions, a single FXT20 Pro-C C12 system and one operator produces approximately 130 to 175 joints per 8-hour shift. Accounting for shift breaks (30 minutes), argon cylinder changes (5 minutes per cylinder, approximately 2 changes per shift at C12 consumption rates), and cooling water level checks (5 minutes per shift), the realistic production output is approximately 110 to 150 joints per 8-hour shift per system.

Single-Unit vs Multi-Unit Deployment: The Throughput Mathematics

The scaling equation

U-bend orbital welding output scales linearly with the number of concurrent systems, because each system operates independently — there is no shared resource constraint between systems (each has its own power source, argon supply, and operator). Three FXT20 Pro-C C12 systems running concurrently produce three times the output of one system. This is not true of all production bottlenecks, but it is true of welding equipment where the constraint is cycle time per station, not a shared upstream or downstream process.

The capital cost of orbital welding systems does not scale linearly — it scales with the cost tier of the system selected. A compact system at $7,000 to $12,000 per unit allows deployment of 4 to 5 units for the capital cost of one premium-tier system at $35,000 to $65,000. The throughput comparison is therefore not "one premium unit versus one compact unit" — it is "one premium unit versus four or five compact units deployed in parallel."

Production scenario analysis

Consider a DLC manifold fabrication scope requiring 6,000 U-bend joints (Φ12 mm, 316L stainless) in a 30-working-day production window — a representative scope for a 20 MW AI data hall DLC system pre-fabrication. The required daily output is 200 joints per day.

Scenario A — single premium-tier system: One high-automation system with a stated cycle time of 48 to 72 seconds per joint (based on published specifications for premium-tier U-bend orbital welding equipment) produces approximately 200 to 280 joints per 8-hour shift at those cycle times, including inter-joint handling. At 200 joints per day, one premium-tier unit meets the target — on paper. In practice, planned and unplanned maintenance events, operator fatigue, and argon supply logistics on a 10-hour operating day reduce effective utilisation to 70% to 80% of the theoretical maximum. At 80% utilisation, effective output is 160 to 224 joints per day — marginal against a 200-joint daily target, with no capacity reserve for scope additions or re-weld events. Capital cost: $35,000 to $65,000 for the system. Lead time: 8 to 20 weeks.

Scenario B — two FXT20 Pro-C C12 systems: Two compact systems at 110 to 150 joints per system per shift produce 220 to 300 joints per day at full utilisation. At 80% utilisation, effective output is 176 to 240 joints per day — above the 200-joint daily target, with capacity reserve. If one system has a maintenance event, the second continues production; the project does not stop. Capital cost: $14,000 to $24,000 for two complete systems. Lead time: 5 to 10 working days. The two-system FYID configuration meets the throughput target, at lower capital cost, with built-in redundancy, and available within the first week of the project.

Scenario C — three FXT20 Pro-C C12 systems: Three systems produce 330 to 450 joints per day at full utilisation, or 264 to 360 at 80% utilisation — 30% to 80% above the daily target. This excess capacity provides schedule buffer for scope changes, re-weld events, and shift-time variability. Capital cost: $21,000 to $36,000. At the upper end of this range, the three-FYID configuration approaches the lower end of the single-premium-tier cost, while delivering 40% higher throughput with full redundancy.

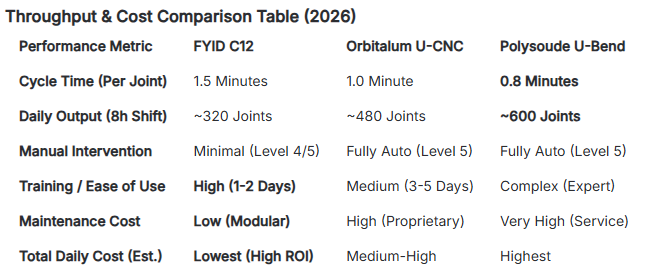

Throughput Comparison Table: Single Unit vs Multi-Unit Deployment for 200-Joint Daily Target

The table shows that two FYID C12 units deliver comparable or higher throughput to a single premium-tier system, at 40% to 65% lower capital cost, with redundancy that a single-unit system cannot provide, and available in 5 to 10 days versus 8 to 20 weeks. Three FYID units exceed the throughput of a single premium-tier system by 30% to 60% at comparable or lower capital cost.

Factors That Reduce Effective Throughput — and How the FYID C12 Addresses Each

Operator training time

Any system requires time before a new operator reaches consistent production-grade throughput. The FXT20 Pro-C Expert Parameter Library generates welding parameters from tube OD and wall thickness input — the operator selects the specification and the system generates the program. For a new operator on Φ12 mm 316L 0.8 mm wall U-bend joints, production proficiency (consistent joint quality and clamping speed meeting the target cycle count) is typically achieved in 4 to 8 hours of supervised production practice. This means a new crew can be in production the same day the system arrives on site, after a morning training session. Systems with more complex manual programming interfaces typically require 2 to 5 days before a new operator reaches consistent throughput.

Maintenance events and consumable changes

The production-limiting maintenance events for U-bend orbital welding are: tungsten electrode re-grinding (every 80 to 120 joints, approximately 3 minutes per re-grind using the included electrode grinder), argon cylinder changes (every 20 to 30 C12 joints at standard flow rates, approximately 5 minutes per change), and cooling water level checks (once per shift, 2 minutes). None of these events require the system to stop for more than 5 minutes, and none require a service technician — all are performed by the production operator. Proprietary maintenance procedures or service-contract-dependent consumables on premium-tier systems add non-production downtime that is difficult to schedule and cannot be absorbed within a shift without disrupting the output count.

Weld anomaly events and re-welds

The FXT20 Pro-C's built-in anomaly detection flags any joint where the weld parameters deviated from the stored program during the cycle. The flagged joint is identified immediately — the operator does not proceed to the next joint without reviewing the anomaly flag on the printed weld report. This real-time quality gate catches the majority of re-weld events at the joint level rather than at the pressure test stage, where re-working a completed manifold assembly costs significantly more time than re-welding a joint before the next one is started. At the production rejection rates observed in 316L U-bend production with the C12 system (0.3% to 0.8% of joints flagged), a 200-joint shift produces zero to two anomaly-flagged joints requiring operator review — a negligible impact on shift throughput.

Application Scenarios: Which Configuration for Which Project Type

Pre-fabrication shop production of DLC manifold assemblies

A shop producing DLC manifold assemblies for multiple AI data center projects simultaneously — with a steady-state production volume of 500 to 2,000 U-bend joints per week — benefits from 3 to 4 FYID C12 systems running concurrently on separate assembly stations. Each system operates with one dedicated operator; the shop supervisor manages quality documentation, argon supply logistics, and program library maintenance across all stations. Total capital cost for a 4-station shop: $28,000 to $48,000. This configuration achieves 1,400 to 2,400 joints per 5-day week at 80% utilisation — sufficient for a high-output manifold assembly operation serving multiple project sites simultaneously.

On-site DLC manifold installation at an active data center construction project

An on-site crew installing DLC manifolds during the mechanical commissioning phase of a 10 MW to 40 MW AI data hall — where the installation window is 6 to 10 weeks — requires 1 to 3 FYID C12 systems depending on the U-bend joint count in the project scope. For a 3,000-joint U-bend scope in a 6-week (30-working-day) window: 100 joints per day target, achievable with one FYID C12 system (110 to 150 joints per shift at full utilisation) with schedule margin. For a 6,000-joint scope in the same window: 200 joints per day target, requiring two systems. The FXT20 Pro-C's 8-metre standard cable length and 1.5 kg to 2.0 kg C12 head weight allow one operator to work across multiple manifold assembly stations within a data hall without relocating the power source between stations.

High-volume fixed-plant CDU manufacturing

A fixed-plant manufacturer of cooling distribution units (CDUs) producing 50 to 200 units per month — each containing 40 to 120 U-bend tube joints in the heat exchanger tube bundle — operates a higher daily volume (2,000 to 24,000 U-bend joints per month) that may justify a different configuration analysis. At the upper end of this range, 4 to 6 FYID C12 systems in a dedicated production cell deliver 440 to 900 joints per 8-hour shift at full utilisation — within the throughput range of a single high-automation premium-tier system, at 40% to 60% lower capital cost and with the redundancy benefit that any single-unit configuration cannot provide. For CDU manufacturers evaluating a permanent production cell investment, the multi-FYID configuration is the correct starting point for the CAPEX analysis.

Frequently Asked Questions — U-Bend Orbital Welding Throughput for AI Liquid Cooling Production

What is the realistic joints-per-shift output for the FYID C12 on Φ12 mm 316L stainless U-bend production?

In a continuous 8-hour production shift with a practised one-person crew on a uniform Φ12 mm 316L specification batch, the FYID FXT20 Pro-C C12 system produces approximately 110 to 150 joints per shift. This accounts for the weld cycle time (90 to 130 seconds per joint at standard parameters), inter-joint handling (30-second clamping, 15-second head removal, 20-second report filing), shift breaks (30 minutes), argon cylinder changes (two changes per shift at approximately 5 minutes each), and cooling water checks (5 minutes). At 80% effective utilisation — accounting for minor interruptions — the reliable production estimate for planning purposes is 110 to 130 joints per shift.

How does multi-unit FYID deployment compare to a single high-automation premium-tier U-bend system?

A single premium-tier U-bend orbital welding system with published cycle times in the range of 48 to 72 seconds per joint produces approximately 200 to 280 joints per shift at full utilisation, or 160 to 224 joints at 80% utilisation. Two FYID C12 systems produce 220 to 300 joints per shift at full utilisation, or 176 to 240 at 80% utilisation — comparable or higher throughput, at 40% to 65% lower capital cost for the two-unit configuration, delivered in 5 to 10 days versus 8 to 20 weeks, and with built-in redundancy that a single-unit system cannot provide.

What is the minimum tube center spacing required to use the FYID C12 head in a dense DLC manifold layout?

The C12 head requires a minimum tube center-to-center spacing of 38 mm and a 25 mm obstacle-free clearance radius around the weld centerline for full 360° rotation. Additionally, the straight tube must extend ≥36 mm above the tubesheet or manifold body face, and the straight section from the weld centerline to the start of the U-bend curve must be ≥44 mm. For DLC manifold designs with tube spacing below 38 mm, automated orbital welding with the standard C12 head is not possible — contact FYID-Feiyide's applications engineering team for assessment of the specific layout before finalising the manifold design.

Can the FYID C12 system's output rate be increased by reducing pre-flow or post-flow times?

Reducing pre-flow below 3 seconds risks incomplete argon displacement from the tube bore before arc initiation, producing inner wall oxidation that fails borescope inspection on 316L stainless for DLC coolant contact applications. Reducing post-flow below 8 seconds on 0.8 mm wall tube risks atmospheric oxidation of the cooling weld pool at the arc termination point — visible as gold or brown discolouration at the weld end. Both pre-flow and post-flow are process-critical parameters that cannot be reduced without compromising the zero-oxidation bore requirement. The cycle time reductions available within the process constraints are: optimising the ramp-up rate (reducing ramp time from 4 seconds to 2 seconds on pre-heated tube in a warm production run) and reducing the weld overlap zone from 15% to 10% — combined saving of approximately 5 to 10 seconds per joint, a 5% to 8% cycle time improvement.

What documentation does the FYID C12 system produce for DLC manifold quality records and CDU warranty compliance?

The FXT20 Pro-C power source generates a printed weld report for every joint: weld program number, tube OD and wall thickness, current profile (peak and base values by segment in pulse mode), rotation speed, arc voltage, pre-flow and post-flow times, timestamp, and anomaly flag status. For DLC manifold assemblies, reports are filed by manifold assembly serial number and joint index number, creating a complete per-joint quality record for each manifold unit. CDU manufacturers typically include the weld log as part of the unit's technical documentation submitted with the CDU for data center commissioning. For pressure vessel-classified CDU heat exchangers under ASME Section VIII, the FXT20 weld reports satisfy the mechanised welding parameter traceability requirement under UW-28 when the welding program is qualified per ASME Section IX.
