How to Choose the Right Orbital Welder: Semiconductor Gas Lines vs. Dairy Piping

Category: Technical Guides & Standards  |  Applies to: FYID FXT20 C-Series and FYID FXT40 Pro K-Series  |  Reading time: 10 min

The Primary Selection Variable: Joint Geometry, Not Pipe Size

The most common error in orbital welding system procurement is selecting a system based on pipe diameter alone. Diameter determines which specific welding head model is required — C5 versus C80, K114 versus K325 — but it does not determine whether a closed-head or open-head system is the correct architecture. That decision is governed by three variables: wall thickness, joint geometry (autogenous butt weld versus V-groove multi-pass), and the inert gas coverage requirement for the tube inner wall.

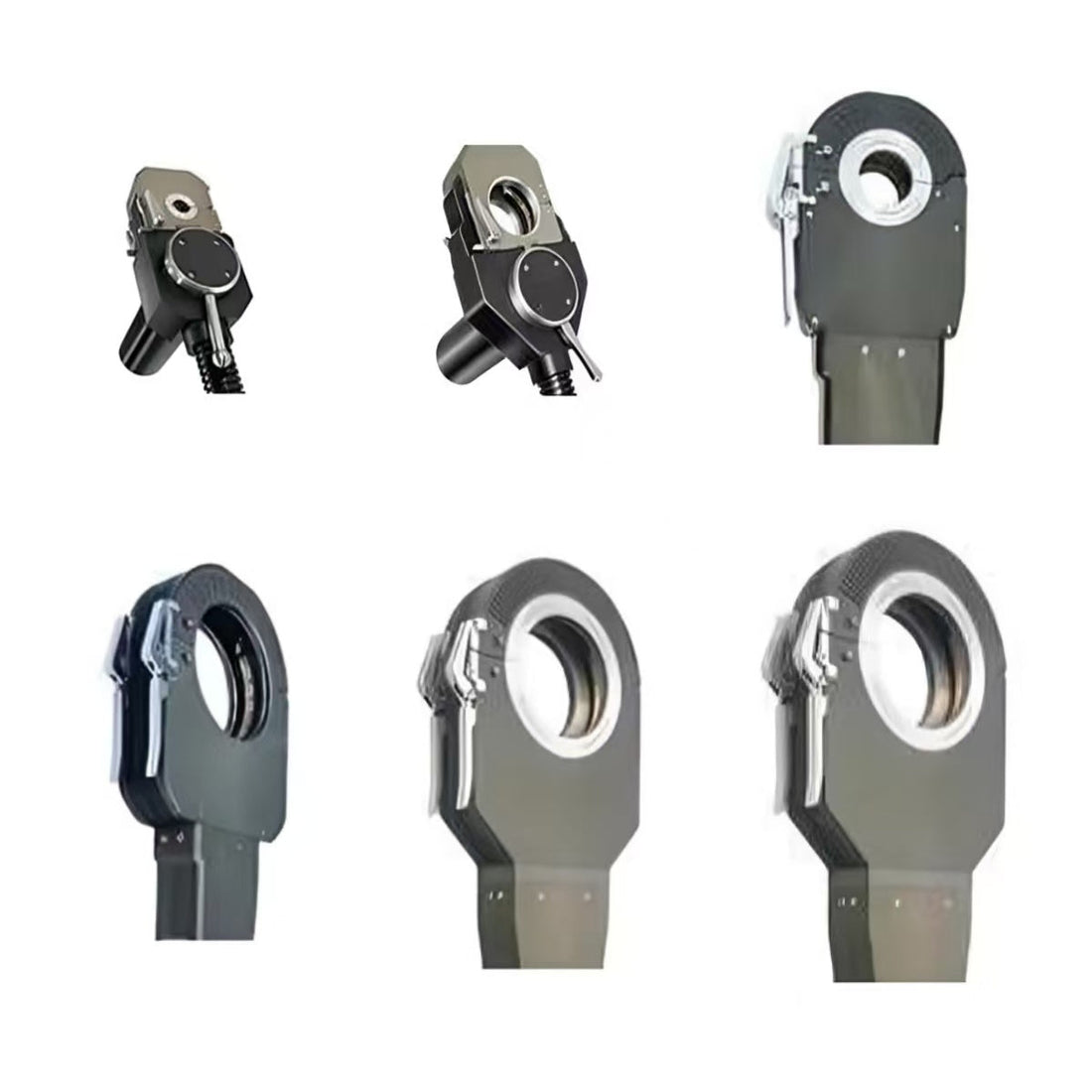

A closed-head orbital welder encloses the tube joint inside a sealed argon chamber. The tube OD is clamped inside the head body; the electrode rotates inside the sealed chamber; both the outer weld surface and the tube inner wall are protected by the chamber's argon atmosphere simultaneously. Closed-head systems are designed for autogenous (no filler wire) single-pass circumferential butt welds on thin-wall tube — wall thickness 0.5 mm to 3.0 mm. They require access to both ends of the tube to install the head.

An open-head orbital welder clamps onto the pipe externally. The welding head does not enclose the pipe — it rotates around the outside of the joint, with the torch exposed to atmosphere. Open-head systems are designed for multi-pass V-groove welding with filler wire on heavy-wall pipe — wall thickness 2 mm to 13 mm — and for in-position joints on installed pipe where pipe-end access is not available. Shielding gas is delivered through the torch nozzle, not through a sealed chamber; internal back-purge requires a separate setup if the joint specification requires it.

The wall thickness ranges overlap between 2 mm and 3 mm. In this overlap zone, the selection is determined by the joint quality requirement: if the application requires ASME BPE SF1 internal surface finish (Ra ≤ 0.51 µm) or SEMI F20 bore cleanliness — semiconductor UHP, pharmaceutical WFI, food-grade sanitary — a closed-head system with enclosed argon chamber is required regardless of wall thickness. If the application requires 100% radiographic inspection of a pressure-rated girth weld with full penetration on heavy-wall pipe — petrochemical, power generation, shipbuilding — an open-head system with filler wire and multi-pass capability is required.

Industry Application 1 — Semiconductor UHP Gas Lines: SEMI F20 Cleanliness at Φ6.35 mm to Φ50.8 mm

What the specification requires

Ultra-high purity (UHP) gas delivery systems in semiconductor fabs transport process gases — silane, nitrogen trifluoride, hydrogen chloride, ammonia, and specialty dopant gases — at purities of 99.9999% (6N) or higher from the gas farm to deposition, etch, and diffusion tools. SEMI F20 (Specification for Leak Integrity of High-Purity and Ultrapure Gas Distribution Systems) specifies the maximum allowable particle count and metallic contamination at weld joints: particulate at 0.1 µm and above must be below threshold levels that correspond to a silver-white, oxidation-free internal weld surface with no scale, no porosity, and no surface roughness increase relative to the electropolished base tube. VIM/VAR (Vacuum Induction Melted / Vacuum Arc Remelted) 316L stainless steel is the standard tube material for most UHP applications — this alloy requires full inert gas coverage during and after welding to prevent chromium depletion at the weld zone that would compromise corrosion resistance in aggressive gas service.

The typical tube OD range in UHP gas delivery is Φ6.35 mm (¼") to Φ38.1 mm (1½") for main distribution lines, with Φ3.175 mm (⅛") to Φ12.7 mm (½") for instrument sampling and sub-fab lines. Wall thickness is typically 0.89 mm to 1.65 mm. These dimensions define a heat input window of approximately 10 A to 100 A steady-state — the operating range where arc length control, travel speed consistency, and thermal management are most sensitive to variation.

Correct system: FXT20 + C5 / C10 / C40 closed-head

The FYID FXT20 with C5 (Φ6.35–12.7 mm), C10 (Φ6.35–25.4 mm), or C40 (Φ6.35–38.1 mm) enclosed heads is the correct system for UHP semiconductor gas line welding. The enclosed chamber delivers argon to both the outer weld zone and the tube inner wall through the head's integrated gas channel — no separate back-purge line is required. The arc initiates at 5 A minimum current, sustaining autogenous fusion on 0.89 mm wall tube without burn-through. The FXT20 Expert Parameter Library stores pre-qualified programs for EP-grade 316L tube in the standard UHP size series, recallable from the 10-inch touchscreen without manual parameter entry.

The FXT20's 220V ±10% single-phase input is compatible with cleanroom facility power infrastructure — no three-phase supply required in the sub-fab or gas cabinet assembly area. The system's compact footprint (power source plus head fits on a standard equipment trolley) allows positioning inside or adjacent to gas cabinet (BCU) assemblies during in-situ welding operations.

Industry Application 2 — Biopharmaceutical and Food/Dairy Sanitary Piping: ASME BPE and 3-A Standard

What the specification requires

Biopharmaceutical manufacturing facilities build and qualify sanitary piping systems to ASME BPE (Bioprocessing Equipment), which specifies weld internal surface finish at SF1 (Ra ≤ 0.51 µm), weld inspection criteria including borescope examination, and per-joint documentation requirements for process-contact surfaces in bioreactors, CIP/SIP circuits, WFI (Water for Injection) distribution loops, and product transfer lines. Food and dairy processing facilities build to 3-A Sanitary Standard No. 63-03, which requires smooth, crevice-free internal weld surfaces compatible with CIP cleaning circuits and USDA inspection. Both standards prohibit post-weld pickling with nitric/hydrofluoric acid as a surface treatment in operating GMP facilities — the weld must achieve compliant surface finish as-welded.

Tube OD range for sanitary piping is typically Φ25.4 mm (1") to Φ101.6 mm (4") in 304 or 316L stainless steel, wall thickness 1.24 mm to 2.11 mm (0.065" to 0.083" wall in US ASTM A270 sanitary tube). At this wall and OD range, 100% duty cycle at the operating current (60 A to 130 A) is required for high-volume production — 80 to 200 joints per shift — without mandatory cooling intervals that would constrain shift throughput.

Correct system: FXT20 + C40 / C80 / C120 closed-head

The FXT20 with C40 (Φ6.35–38.1 mm), C80 (Φ12.7–76.2 mm), or C120 (Φ19.0–114.3 mm) heads covers the full sanitary tube diameter range from 1" to 4". One FXT20 power source drives all three head models interchangeably — a fabrication shop running mixed 1" through 4" sanitary tube operates from a single power source with head changeover under 10 minutes between diameter ranges. The 100% duty cycle at 155 A sustains continuous production at the 60 A to 130 A operating currents for this tube range without thermal shutdown.

The FXT20's built-in industrial micro printer generates a printed weld report for every joint — current profile by segment, travel speed, arc voltage, pre-flow and post-flow times, and timestamp — satisfying ASME BPE Section MJ weld log requirements and the per-joint traceability records required for FDA 21 CFR Part 11 audit documentation. For pharmaceutical facility IQ/OQ/PQ validation, the USB data export provides the complete per-joint parameter record set for the validation binder without manual transcription.

Industry Application 3 — Petrochemical and Power Generation: Multi-Pass V-Groove at Φ60 mm to Φ325 mm

What the specification requires

Petrochemical process piping (ASME B31.3) and power station piping (ASME B31.1, ASME Section I) require full-penetration girth welds on carbon steel and stainless steel pipe in OD ranges from Φ60 mm (2½") to Φ325 mm (12") at wall thicknesses from 3 mm to 13 mm. These joints are subject to 100% radiographic or ultrasonic inspection on critical service lines — any lack-of-fusion, undercut, or porosity at any position in the weld is a rejection. Multi-pass V-groove welding with filler wire is the required process for wall thicknesses above 3 mm: a root pass establishes full back-side penetration, fill passes build up the groove to within 2 mm to 3 mm of the surface, and a cap pass with oscillation (OSC) closes the joint with the specified reinforcement height.

All-position welding capability — flat (1G), horizontal (2G), vertical-up (3G), and overhead (4G) — is mandatory because industrial pipe joints are fixed in position by the installed piping system. The welding system must deliver consistent weld parameters through the full 360° rotation, including the overhead position where gravitational effects on the weld pool are most pronounced. AVC (Automatic Voltage Control) arc length tracking is required on uneven pipe surfaces and multi-pass fill geometry where the torch standoff changes as the bead builds up.

Correct system: FXT40 Pro + K-Series open-head

The FYID FXT40 Pro with K76 through K325 open-head clamps covers pipe OD from Φ20 mm to Φ325 mm at wall thicknesses up to 13 mm. The Siemens S7-200 SMART V3.0 PLC provides industrial-grade control stability under variable grid conditions — a specific requirement for petrochemical plant and power station environments where grid voltage fluctuation affects conventional inverter-controlled systems. The 8-zone × 8-stage programming structure assigns independent parameters to each quadrant of the pipe circumference — replicating the positional adjustments that a certified manual welder makes instinctively for each position, but programmed precisely and reproduced identically on every joint. The system outputs 315 A at 100% duty cycle and 400 A at 60% duty cycle at 40°C ambient — adequate for sustained multi-pass welding on heavy-wall carbon steel pipe in high-ambient industrial environments.

Industry Application 4 — HVAC, Data Center Liquid Cooling, and Mixed Industrial: Versatile Mid-Range Specification

HVAC and refrigeration

HVAC refrigerant and chilled water piping in carbon steel and stainless steel, OD range Φ12.7 mm to Φ76.2 mm, wall 1.0 mm to 3.0 mm, covers both the FXT20 C-Series upper range and the FXT40 Pro lower range. The selection criterion here is joint access: if the pipe can be accessed from both ends (shop fabrication of spool assemblies), the FXT20 + C40/C80 closed-head system produces faster cycle times and lower argon consumption than the open-head alternative. If the pipe is fixed in the HVAC unit or building mechanical room and only one end is accessible, the FXT40 Pro K76/K114 open-head is the correct system.

AI data center liquid cooling

AI server direct liquid cooling (DLC) loop piping — Φ12.7 mm to Φ38.1 mm 316L stainless steel at 0.89 mm to 1.65 mm wall — follows the same specification logic as UHP semiconductor gas lines: enclosed argon protection to prevent oxide particulate in the cooling loop, 5 A minimum arc current for thin wall, and per-joint traceability for commissioning documentation. The FXT20 + C10/C40 closed-head is the correct system. For U-bend tube socket welds in the heat exchanger cooling modules within the CDU (cooling distribution unit), the FYID FXT20 Pro-C with C12/C16/C20/C25 U-bend heads is the dedicated system for that joint geometry.

Procurement Decision Matrix — Selecting the Correct FYID Orbital System by Application

Three Procurement Qualification Questions for Any Orbital Welding System

Before issuing a purchase order for an orbital welding system, procurement managers should require documented answers to these three questions from any supplier. The answers determine whether the system can be qualified to the project's regulatory and production requirements before the equipment arrives on site.

Question 1 — What is the duty cycle at the operating current for this application?

Duty cycle must be specified at the current level the system will actually use — not at the maximum rated current. A system rated "400 A at 60% duty cycle" may operate at only 30% or 40% effective duty cycle at the 80 A to 130 A currents required for 1" to 3" sanitary tube orbital welding in high-ambient environments. Request the duty cycle curve — power output versus continuous duty percentage at the application's operating current — not the headline specification. For the FXT20, the 100% duty cycle rating applies at 155 A; all thin-wall sanitary and UHP tube applications operate below this threshold, meaning the 100% duty cycle is available across the full production range.

Question 2 — What weld documentation does the system generate, and is it compliant with the project's regulatory standard?

Specify the regulatory standard (ASME BPE, FDA 21 CFR Part 11, SEMI F20, ASME Section IX, NQA-1) and ask the supplier to show a sample weld report from the system. Verify that the report contains: weld date and time stamp, machine or program identifier, actual current values by segment (not just target values), actual travel speed, shielding gas pre-flow and post-flow times, and an anomaly or deviation flag if parameters deviated from the stored program. A weld report that shows only "welding completed normally" without actual parameter data does not satisfy ASME BPE Section MJ or FDA 21 CFR Part 11 requirements.

Question 3 — What is the operator training requirement, and what ongoing support is available for the application?

Request the supplier's documented training program for the system and the application: how many hours to production proficiency for an operator without prior TIG certification, what the Expert Parameter Library covers for the specific tube specifications in the project scope, and what support is available for WPS program qualification and PQR documentation. For the FXT20, the standard documentation package includes the Expert Parameter Library programs for common tube specifications in each application range; custom program development for non-standard specifications is available from FYID-Feiyide's applications engineering team with PQR support.

Frequently Asked Questions — Orbital Welding System Selection

Can one power source drive both closed-head and open-head systems?

No. The FXT20 power source (5A – 200A, 220V single-phase, 4.5 KVA) is designed for the C-Series enclosed heads for thin-wall tube autogenous welding. The FXT40 Pro power source (10A – 400A, 380V three-phase, 21.5 KVA, Siemens PLC) is designed for the K-Series open-head clamps for heavy-wall pipe multi-pass welding with wire feed. The two systems have different power ratings, control architectures, and cooling capacities matched to their respective application ranges. A shop running both thin-wall sanitary tube and heavy-wall industrial pipe requires both power sources; the C-Series and K-Series heads are not interchangeable between the two systems.

What is the overlap zone between closed-head and open-head systems, and how do I decide in the overlap?

The overlap zone is approximately Φ25 mm to Φ76 mm OD at 2 mm to 3 mm wall. In this range, both C-Series closed heads (C40 or C80) and K-Series open heads (K76) can physically make the weld. The decision criterion is the application standard: if the weld requires ASME BPE SF1 internal surface finish, SEMI F20 bore cleanliness, or 3-A sanitary compliance — choose closed-head for enclosed argon protection. If the weld requires 100% radiographic inspection of a pressure-rated V-groove joint with filler wire reinforcement — choose open-head with AVC and OSC. If neither specific standard applies and the joint is a simple pressure-rated butt weld, closed-head autogenous produces a faster, lower-cost weld cycle on wall thicknesses up to 3 mm.

Is back-purging required when using the FXT20 C-Series enclosed head on stainless tube?

No separate back-purge line is required. The C-Series head delivers argon to both the outer weld zone and the tube inner wall through the head's integrated dual-channel gas system. Pre-flow purges the internal argon atmosphere before arc initiation; post-flow maintains coverage until the metal cools below the oxidation threshold for 316L stainless steel (approximately 400°C). The enclosed chamber's argon atmosphere is self-contained — both channels draw from the same argon supply through the head's internal gas distribution manifold. This eliminates the setup time, argon volume, and failure risk of a separate back-purge line at the remote tube end.

What pipe end preparation is required before orbital welding on either system?

For closed-head autogenous welding (FXT20 C-Series): end face perpendicularity within ±0.5° of square, no roll edge from wheel cutting, full-face contact across the tube wall face at zero applied force (gravity fit-up), fit-up gap 0 to 0.1 mm maximum. The CM Series planetary cold-cut machines produce a compliant end face without secondary grinding on tube OD up to Φ330 mm. For open-head V-groove welding (FXT40 Pro K-Series): V-groove bevel at ≥37° single bevel for carbon steel above 2.5 mm wall, ≥45° for stainless steel above 2.5 mm wall, fit-up gap 0 to 0.5 mm, misalignment ≤10% of wall thickness. The split-frame pipe cutting and beveling machine produces compliant V-groove preparation on installed pipe from Φ20 mm to Φ1230 mm without pipe removal.

How long does it take to qualify a new tube specification for production welding on the FXT20?

For tube specifications within the FXT20 Expert Parameter Library — the standard UHP, sanitary, and industrial tube sizes covered by the pre-qualified programs — production qualification requires 2 to 3 trial welds on scrap tube to verify the library program produces acceptable results on the specific material batch and fit-up condition, followed by one qualified test coupon for the WPS record. Total time from program selection to first production weld is typically 2 to 4 hours. For tube specifications outside the library — non-standard OD, wall thickness, or material — parameter development starts from the library's nearest comparable specification and typically requires 4 to 8 hours of trial welding to establish a stable program, followed by formal WPS qualification testing per ASME Section IX or the applicable standard.
