Case Study: Achieving 100% X-Ray Pass Rate in High-Pressure Heat Exchanger Fabrication (UAE)

Tube-to-Tubesheet Weld Integrity Requirements in Middle Eastern Offshore and Refinery Heat Exchangers

Shell-and-tube heat exchangers operating in offshore oil platforms and onshore refineries in the Arabian Gulf region experience continuous exposure to 45 °C to 55 °C ambient air, relative humidity above 85%, and chloride-laden salt spray at concentrations up to 80 mg/m²/day — conditions defined as Corrosivity Category C5-M under ISO 12944-2. Heat exchangers in these environments built to ASME Section VIII Division 1 and designed per TEMA Class R (refinery service) standards require tube-to-tubesheet joints that maintain pressure integrity at design pressures up to 150 bar and tube-side temperatures up to 300 °C. A single tube-to-tubesheet weld failure in a pressurized hydrocarbon service heat exchanger triggers a process shutdown that costs offshore operators USD 250,000 to USD 1,200,000 per day in lost production. A specialist UAE manufacturer of explosion-proof HVAC systems certified to ATEX Directive 2014/34/EU and high-pressure heat exchangers certified to the PED (Pressure Equipment Directive) 2014/68/EU deployed the FYID-Feiyide FXT20 digital power source paired with the PT40 tube-to-tubesheet orbital welding head to eliminate the weld defect rate that manual GTAW produced on Φ16 mm to Φ38 mm tube arrays.

Manual GTAW Failure Modes on Tube-to-Tubesheet Arrays

Manual GTAW on tube-to-tubesheet joints requires the welder to execute a complete 360° circular weld on tube OD from 16 mm to 38 mm at a fixed radial position inside the tubesheet bore, with electrode-to-workpiece gap tolerance of ±0.3 mm and travel speed variation below ±5 mm/min. Over a production run of 200 to 400 tubes per tubesheet — typical for TEMA R Class heat exchangers with 600 mm to 1,200 mm shell diameter — cumulative operator fatigue degrades arc length control by 0.4 mm to 0.8 mm by the 150th joint, producing penetration variation of ±0.5 mm and porosity clusters detectable on radiographic inspection per ASME Section V Article 2. The UAE manufacturer recorded a first-pass radiographic rejection rate of 12% to 18% on manual tube-to-tubesheet welds, requiring rework that consumed 3.5 additional labor hours per rejected joint and delayed heat exchanger certification by 5 to 12 working days per unit.

FXT20 and PT40 System Configuration for Tube-to-Tubesheet Applications

PT40 Orbital Head Engineering and Drive Mechanism

The PT40 tube-to-tubesheet welding head covers tube OD from Φ16 mm to Φ80 mm with a hollow-cup DC servo motor producing rotation speeds from 0.5 rpm to 3.0 rpm, controlled to ±0.5% speed stability throughout the 360° weld cycle. The hollow-cup motor architecture positions the rotor concentrically around the tube axis, eliminating the eccentric mass that causes vibration in conventional geared rotary heads and maintaining electrode-to-workpiece gap within ±0.05 mm throughout orbital rotation. The PT40 accommodates both flush and protruding tube joint configurations per ASME Section VIII Division 1 UW-20, with electrode extension adjustable in 0.1 mm increments from 3.0 mm to 8.0 mm. The head body diameter of 95 mm allows installation in tubesheet arrays with tube pitch as tight as 19.05 mm (3/4″ triangular pitch) on Φ16 mm OD tubes, covering the minimum pitch-to-diameter ratio of 1.19 permitted under TEMA standards for refinery service exchangers.

FXT20 Digital Power Source Portability for On-Site Assembly

The FXT20 power source weighs 18 kg and measures 420 mm × 280 mm × 380 mm — 33% smaller by volume than conventional 200 A GTAW power sources in the 28 kg to 35 kg class. This compact envelope allows technicians to position the FXT20 on scaffolding planks rated to 225 kg/m² working load without exceeding point-load limits, and to carry the unit up ladders without mechanical lifting aids on offshore rig installations where crane lift windows may be limited to 2 hours per shift. The FXT20 operates on 380 V ± 15% three-phase input at 50 Hz or 60 Hz, accepting the voltage fluctuations common on diesel generator power systems used during offshore heat exchanger on-site assembly. Input current draw at 200 A peak output measures 21 A per phase, within the 32 A circuit breaker rating of standard offshore temporary power distribution boards.

Expert Parameter Library for Stainless Steel and High-Alloy Tubing

The FXT20 Intelligent Expert Database stores 200 preprogrammed welding procedures covering tube materials including ASTM A213 TP316L, TP304L, TP321, Duplex UNS S31803, Super Duplex UNS S32750, Inconel 625 (UNS N06625), and Titanium Grade 2. For the UAE client's primary tube specification — Φ25.4 mm OD × 2.0 mm wall TP316L per ASTM A213 — the FXT20 loads a four-level pulsed schedule with peak current 95 A, background current 38 A, pulse frequency 2.0 Hz, and rotation speed 1.2 rpm in under 2 seconds from three HMI inputs. The procedure includes automatic current taper from 95 A at the 12 o'clock start position to 72 A at the 6 o'clock position — a 24% reduction — compensating for heat accumulation in the tubesheet mass during the 50-second weld cycle.

Implementation Results: 1,200-Joint Production Run

Radiographic Inspection Pass Rate Under ASME Section V

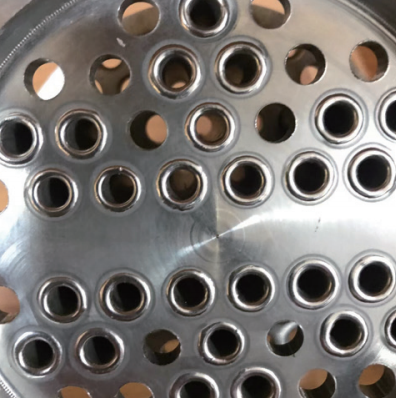

Over a production cycle of 1,247 tube-to-tubesheet joints welded using the FXT20 and PT40 system on 316L and Duplex 2205 tubing in Φ16 mm to Φ38 mm OD range, the UAE manufacturer achieved a 100% first-pass acceptance rate on radiographic examination per ASME Section V Article 2 and acceptance criteria of ASME Section VIII Division 1 UW-51. Zero joints required repair, eliminating the 3.5 labor-hours-per-joint rework cost that manual GTAW incurred and saving approximately 655 labor hours across the project. The previous manual GTAW rejection rate of 12% to 18% on equivalent joint populations would have generated 150 to 224 rejected joints requiring rework on the same 1,247-joint project scope.

Cycle Time Reduction and Delivery Schedule Compliance

Manual GTAW cycle time per tube-to-tubesheet joint on Φ25.4 mm OD tubes measured 4.2 minutes average, including electrode positioning, arc start, weld rotation, and joint inspection — degrading to 5.8 minutes per joint after the 150th consecutive weld due to operator fatigue. The FXT20 and PT40 automated cycle completed the same joint in 2.1 minutes average: 18-second pre-purge, 50-second weld rotation, 15-second post-purge, and 40-second head repositioning. This 50% cycle time reduction allowed the manufacturer to complete a 480-joint heat exchanger tubesheet in 16.8 hours of productive welding time versus 33.6 hours for manual GTAW, enabling delivery to a major offshore rig operator within a 4-week contractual schedule that manual production could not have met without overtime at 1.5× labor cost.

Digital Weld Records and Audit Documentation

The FXT20 built-in thermal micro printer generates a paper weld log for every joint recording joint sequential number, date and time stamp, peak current (A), background current (A), arc voltage (V), rotation speed (rpm), shield gas flow (L/min), pre-purge duration (seconds), weld duration (seconds), and post-purge duration (seconds) — 10 parameters per joint. The printed log serves as a "Digital Birth Certificate" for each heat exchanger, providing the traceability documentation required by ISO 9001:2015 Clause 8.5.2 for production and service provision. For clients of global energy operators including Saudi Aramco, ADNOC, and Shell, these logs satisfy the vendor quality documentation requirements of ITP (Inspection and Test Plan) hold points at the tube-to-tubesheet weld stage. The FXT20 also exports weld data via USB in CSV format with SHA-256 checksums for integration into the manufacturer's ERP quality management system.

Equipment Qualification Under ASME and International Standards

The FXT20 and PT40 system underwent welding procedure qualification (WPQ) per ASME Section IX at the UAE manufacturer's facility before production commencement. The qualification produced Procedure Qualification Records (PQR) covering the essential variables of QW-402 (joint design), QW-403 (base metal), QW-404 (filler metal — autogenous, no filler), QW-408 (shielding gas — 99.999% argon), and QW-409 (electrical characteristics — pulsed GTAW). The FXT20 current measurement accuracy of ±0.5 A satisfies the QW-191 instrument calibration requirement for essential variable documentation. Tube-to-tubesheet joint designs followed ASME Section VIII Division 1 UW-20 configurations, with joint type selection (full-penetration versus partial-penetration) based on tube-side design pressure and corrosion allowance specified in the heat exchanger data sheet per TEMA Class R.

The FXT20 and PT40 system product page provides dimensional drawings for PT40 head clearance verification during tubesheet layout design. Companion equipment in the FYID-Feiyide product line — the FXT40 Pro for wall thickness up to 12 mm on high-pressure boiler tubes, the C-Series enclosed heads for process piping connections on the same heat exchanger skid, and the PT40 portable pipe cutting machine for tube end preparation to ±0.05 mm flatness — supports the complete heat exchanger fabrication scope within a single equipment ecosystem. The FYID-Feiyide automated welding system range covers tube OD from 3.175 mm to 88.9 mm across all head configurations.

Summary Table: Manual GTAW Versus FXT20 + PT40 Automated System

Frequently Asked Questions

What tube OD and pitch configurations does the PT40 head accommodate on TEMA heat exchanger tubesheets?

The PT40 tube-to-tubesheet head covers Φ16 mm to Φ80 mm tube OD with a 95 mm head body diameter, fitting tubesheet arrays with triangular pitch as tight as 19.05 mm (3/4″) on Φ16 mm tubes — the minimum pitch-to-diameter ratio of 1.19 permitted under TEMA Class R. The hollow-cup DC servo motor maintains orbital rotation speed within ±0.5% from 0.5 rpm to 3.0 rpm, supporting both flush and protruding tube joint configurations per ASME Section VIII Division 1 UW-20.

How does the FXT20 manage power supply fluctuations on diesel generator systems at offshore sites?

The FXT20 accepts three-phase input voltage of 380 V ±15% at 50 Hz or 60 Hz, tolerating the 342 V to 437 V range common on diesel generator distribution systems during load transients. At 200 A peak output, input current per phase draws 21 A, within the 32 A circuit breaker rating of standard offshore temporary power boards. The inverter topology at 20 kHz switching frequency maintains output current stability within ±0.5 A despite input voltage variation across the full ±15% tolerance band.

What weld data does the FXT20 micro printer record for ASME and ITP audit compliance?

The FXT20 thermal micro printer generates a per-joint record of 10 parameters: joint number, date and time, peak current (A), background current (A), arc voltage (V), rotation speed (rpm), shield gas flow (L/min), pre-purge duration, weld duration, and post-purge duration. This log satisfies ISO 9001:2015 Clause 8.5.2 production traceability requirements and ITP hold point documentation for global energy operator audits including Saudi Aramco and ADNOC supplier quality requirements. USB export provides CSV files with SHA-256 checksums for ERP integration.

What welding procedure qualification does the FXT20 and PT40 system require under ASME Section IX?

The FXT20 and PT40 system qualifies under ASME Section IX through a Procedure Qualification Record (PQR) covering essential variables QW-402 (joint design), QW-403 (base metal P-number), QW-408 (shielding gas — 99.999% argon), and QW-409 (electrical characteristics — pulsed GTAW). The FXT20 current measurement accuracy of ±0.5 A satisfies QW-191 instrument calibration requirements. Qualification test coupons are welded on the actual tube-to-tubesheet configuration and examined per ASME Section V Article 2 radiographic acceptance criteria.

What productivity and cost benefit did the UAE manufacturer achieve by switching to the FXT20 and PT40 system?

The UAE manufacturer reduced cycle time per Φ25.4 mm tube-to-tubesheet joint from 4.2 minutes (manual, increasing to 5.8 minutes after 150 joints) to 2.1 minutes — a 50% reduction. Over 1,247 joints, this eliminated approximately 655 rework labor hours that the previous 12% to 18% manual rejection rate would have generated. The 4-week delivery schedule to an offshore rig operator was met without overtime, and zero radiographic rejections were recorded across the full production run.

Heat exchanger manufacturers evaluating FXT20 and PT40 deployment for ASME Section VIII or PED-certified pressure vessel production can request PT40 tubesheet layout clearance drawings and a sample PQR package from the FYID-Feiyide technical sales department.
