Case Study: How a US Dairy Facility Achieved 8-Week ROI with the FXT20 Turnkey System
Industry: Food & Beverage — Dairy Processing | Location: United States | Product: FYID FXT20 Enclosed Orbital Welding System | Reading time: 8 min
Project Background: 2,000 Metres of ASME BPE Sanitary Piping with a Tight Labour Budget
In early 2025, a large-scale dairy processing facility in the United States broke ground on a new production wing. The scope included installing over 2,000 metres of sanitary stainless steel tube — product lines, CIP (clean-in-place) return circuits, and utility headers — all in 316L stainless steel, ranging from ½" (12.7 mm) to 4" (101.6 mm) OD, with wall thicknesses between 1.5 mm and 2.5 mm.
Every joint on the system was specified to ASME BPE (Bioprocessing Equipment) standard: SF1 internal surface finish (Ra ≤ 0.51 µm), full weld documentation traceable to tube specification and joint location, and GMP compliance for a USDA-inspected dairy facility. The joint count on the scope came to approximately 320 circumferential welds requiring individual qualification records.
The facility's engineering team faced a problem that is now common across US food processing construction: the regional labour market could not supply the number of certified 3-A-qualified manual TIG welders needed to execute the scope within the project timeline. Quotes from welding contractors came back 40% over the project's labour budget, with availability timelines that would have pushed the facility opening date by 11 weeks.
The decision to evaluate automated orbital welding was driven by budget and schedule, not by a preference for automation. The question was whether an orbital system could meet ASME BPE surface finish requirements, produce the GMP weld documentation the facility needed, and be deployed fast enough to recover the schedule.
Why the FXT20 Enclosed Orbital System Was Selected
The facility evaluated three orbital welding systems. The FYID FXT20 with C-Series enclosed welding heads was selected on four criteria that mattered to the engineering team's decision.
Single power source covering the full tube diameter range
The facility's tube range — ½" to 4" OD — required three welding head models: C10 (Φ6.35 mm – Φ25.4 mm), C80 (Φ12.7 mm – Φ76.2 mm), and C120 (Φ19.0 mm – Φ114.3 mm). One FXT20 power source drives all three interchangeably, with head changeover under 10 minutes. Competing systems required a separate power source for each head size, which would have significantly increased the capital cost and the number of machines requiring operator management on-site.
Built-in weld documentation for GMP audit
The FXT20's built-in industrial micro printer generates a printed weld report for every joint: weld program number, tube OD and wall thickness, current profile by segment, travel speed, arc voltage, pre-flow and post-flow times, and timestamp. This output directly satisfies the ASME BPE Section MJ weld log requirement and provides the per-joint parameter traceability the facility's GMP audit documentation required. Competing systems offered data logging only via external USB — no on-machine print capability, which would have required additional software and a dedicated laptop at the welding station.
Silver-white weld interior without pickling
The C-Series enclosed welding head creates a sealed 360° argon atmosphere around the entire tube joint — outer weld surface and tube inner wall simultaneously — through the head's integrated gas channel. No separate internal back-purge line is required. The resulting weld interior on 316L stainless steel is silver-white and oxide-free, meeting ASME BPE SF1 requirements without post-weld pickling. Pickling with nitric/hydrofluoric acid is a GMP risk in a USDA food facility and was not an acceptable option for the engineering team.
One-day operator training
The FXT20's Intelligent Expert Parameter Library generates multi-segment welding parameters automatically from tube OD and wall thickness input. Two general operators — neither with prior TIG certification — were trained to production proficiency in one day. The facility could not have sourced additional certified manual TIG welders within the project timeline; the one-day training requirement was a decisive factor.
Implementation: From Unboxing to First Production Weld
Packaging and arrival condition

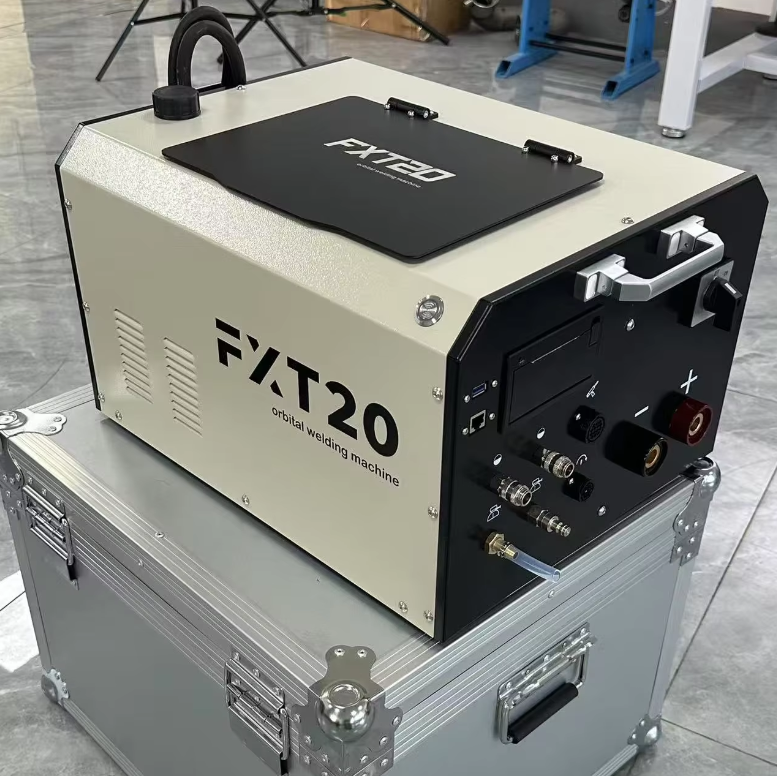

The FXT20 system shipped from the FYID-Feiyide factory in dual aviation-grade aluminium protective cases — waterproof, shockproof, and compression-rated for sea freight. The equipment arrived at the facility after a 10,000-mile sea and road transit in full calibration, with no damage to the welding head rotor or tungsten electrode assembly. The packing list included every consumable and tool required for the first weld: tungsten electrode grinder, argon gas connection hose, cooling water hose, conversion plug, gas hose fittings, and the full set of collet fixtures for the C-Series heads.
Setup and commissioning
The facility's maintenance supervisor and two designated operators completed the initial setup in 4 hours on arrival day: power source installation, water cooling circuit fill with deionised water, argon supply connection, and C10 head installation for the first tube specification (¾" OD, 1.65 mm wall, 316L). The FXT20's Expert Parameter Library was loaded with the plant's three recurring tube specifications before the first shift. No FYID field technician was required on-site for commissioning — remote video support from FYID's applications engineering team covered the initial setup questions in a 45-minute call.
Production run
The system ran two shifts per day for 7 weeks. Average output was 28 documented joints per shift — 56 joints per day — covering the 320-joint scope with time remaining for rework verification and system maintenance days. The two operators managed the full production output: one operating the FXT20 and handling joint fit-up, the other managing argon supply, cooling water level, and weld report filing. This two-person crew replaced the eight-person certified welding team that the contractor's manual TIG quote had been based on.
Quantified Results
| Metric | Manual TIG (projected) | FXT20 Orbital (actual) |
|---|---|---|
| Operators required | 8 certified welders | 2 general operators |
| Project duration | 18 weeks (estimated) | 7 weeks (actual) |
| First-pass visual + borescope rejection rate | 4–6% (industry baseline for manual sanitary TIG) | 0.3% (actual) |
| Post-weld pickling required | Yes (GMP risk in food facility) | No |
| Weld documentation method | Manual log sheets | Printed weld reports, per-joint |
| ASME BPE SF1 compliance | Requires post-weld verification per joint | Process-controlled, consistent across all 320 joints |
| Equipment payback period | N/A | 8 weeks from first production weld |
87% labour reduction
The two-operator FXT20 crew replaced a projected eight-person certified manual TIG team — an 87.5% reduction in welding labour headcount on this scope. At prevailing US certified sanitary welder rates of $55 – $75 per hour, the labour cost delta on an 18-week scope at two-shift production represented a saving that exceeded the FXT20 system cost within 8 weeks of operation. The facility's project manager confirmed the 8-week payback figure based on labour savings alone, before accounting for the schedule compression value of completing the project 11 weeks ahead of the manual TIG timeline.
0.3% first-pass rejection rate
Across all 320 joints, visual inspection and borescope examination identified one joint requiring re-weld — a 0.3% first-pass rejection rate. The single rejected joint resulted from an argon supply pressure drop during one weld cycle (operator error — the argon cylinder was not replaced before the pressure fell below the minimum pre-flow threshold). The FXT20's weld anomaly detection flagged the event on the weld report printout; the joint was identified, re-welded, and re-inspected within the same shift. The historical first-pass rejection rate for manual sanitary TIG on this pipe specification range at the same facility's previous installation had been 4–6%.
Facility now automation-first
Following project completion, the facility engineering team standardised the FXT20 system as the default method for all new 316L sanitary tube installation and modification work at the facility. The maintenance team has been trained on the system as the first-response tool for in-facility tube repair and extension work, replacing the previous practice of calling in contract TIG welders for any sanitary tube work.
Technical Notes for Dairy and Food-Grade Sanitary Piping Projects
For engineers and procurement teams evaluating orbital welding for similar dairy or food processing piping scopes, the following technical parameters from this project are directly applicable.
Tube specifications welded
316L stainless steel, ASTM A270 sanitary tube, OD range ½" (12.7 mm) to 4" (101.6 mm), wall thickness 1.5 mm to 2.5 mm. Autogenous (no filler wire) single-pass circumferential butt welds. Argon purity: 99.999% (5N). Pre-flow time: 5 seconds. Post-flow time: 15 seconds.
Welding head selection
C10 head (Φ6.35 mm – Φ25.4 mm) for ½" and ¾" tube; C80 head (Φ12.7 mm – Φ76.2 mm) for 1" through 3"; C120 head (Φ19.0 mm – Φ114.3 mm) for 4" tube. All three heads ran from the single FXT20 power source. Head changeover averaged 8 minutes including argon connection transfer and program selection.
Fit-up and pre-weld preparation
Tube ends were cut using a CM4 planetary pipe cutting machine at the fabrication bench, producing square, burr-free end faces without secondary grinding. Fit-up gap: zero to 0.1 mm. Tube ends cleaned with acetone before each joint. No tack welds — the C-Series head's collet fixture holds tube alignment during the full weld cycle.
Cooling water specification
Deionised water filled the FXT20's internal cooling circuit. The facility's maintenance team checked the water level at the start of each shift and replaced the water every 30 days. Tap water was explicitly avoided — mineral scaling in the torch cooling channels is the primary cause of premature torch failure in continuous-production orbital welding environments.
Frequently Asked Questions — FXT20 for Dairy and Food Sanitary Piping
Does the FXT20 meet 3-A Sanitary Standard requirements for dairy piping?
Yes. The enclosed argon chamber produces silver-white, oxide-free weld interiors on 316L stainless steel that meet the internal surface finish requirements of 3-A Sanitary Standard No. 63-03. No post-weld pickling or passivation is required. The weld bead profile — consistent, smooth, and free of undercut or overlap — is compatible with CIP (clean-in-place) circuit design requirements for dairy processing environments.
What ASME BPE documentation does the FXT20 produce?
The FXT20's built-in industrial printer generates a printed weld report per joint: weld program number, tube OD and wall thickness, current profile by segment (ramp-up, steady-state, decay), travel speed, arc voltage, pre-flow and post-flow times, and timestamp. This output directly satisfies ASME BPE Section MJ weld log requirements and provides the traceability record needed for GMP facility commissioning documentation. USB export enables unlimited digital archiving.
How long does it take to set up the FXT20 for a new tube diameter?
Head changeover between C-Series models takes under 10 minutes. For tube dimensions stored in the Expert Parameter Library, program selection is a single touchscreen step — no manual parameter recalculation. For a new tube specification not yet in the library, the library generates an initial program from OD and wall thickness input; fine-tuning of that program typically takes 2 to 3 trial welds on scrap tube before production qualification.
Can the FXT20 weld tube in restricted on-site access — tight pipe rack spacing or above-ceiling installations?
The C-Series heads are the most compact enclosed orbital welding heads in the FXT20 product range. The C10 head (for ¼" – 1" tube) weighs 1.8 kg and connects to the FXT20 power source via a flexible 3-metre cable. The head can be positioned in spaces inaccessible to a manual TIG torch and torch holder. For installations where access is constrained by existing pipe runs, structural members, or above-ceiling conditions, provide the installation layout to FYID-Feiyide's applications team for head clearance confirmation before purchase.
What is the total consumable cost per weld joint with the FXT20?
Consumable cost per joint on the US dairy project was dominated by argon gas consumption: approximately 0.15 – 0.20 m³ of argon per joint (5-second pre-flow, 15-second post-flow, weld cycle of 45 – 90 seconds depending on tube OD). Tungsten electrode wear was negligible — one tungsten electrode lasted approximately 80 – 120 joints before requiring re-grinding with the included tungsten electrode grinder. Cooling water replacement cost at deionised water prices is not a significant variable cost.
