Case Study: Boosting Competitiveness for a U.S. Welding Service Provider with FYID Digital Automation

Industry: Mechanical Contracting — Sanitary and Industrial Piping Services  |  Location: United States  |  Product: FYID FXT20 + C80 Enclosed Orbital Welding System  |  Reading time: 8 min

Background: The US Mechanical Contracting Market Demands Automated TIG Capability

The US mechanical contracting industry has undergone a structural shift in the past decade: end-user specifications in food processing, pharmaceutical manufacturing, and energy infrastructure increasingly require automated orbital GTAW (TIG) welding with full per-joint parameter documentation, as a precondition for vendor qualification rather than a premium option. Contractors that cannot demonstrate automated orbital capability are excluded from bidding on these scopes before the technical evaluation begins.

The client in this case study is a professional welding service provider based in the United States, operating a mobile fleet that serves industrial piping, HVAC, and custom metal fabrication clients across multiple states. The firm's revenue model depends on multi-site mobility: crews transport equipment in standard service trucks, set up at client facilities for project durations ranging from one day to several weeks, and move to the next site without a fixed shop base. This mobility constraint rules out the large, permanent-installation orbital welding stations used in pipe spool fabrication shops — the equipment must fit in a truck, set up without overhead crane access, and be operated by the existing crew without weeks of specialist training.

The client had been executing all stainless steel sanitary and industrial pipe joints by manual TIG for the previous eight years. Two market pressures made the manual-only model unsustainable: the regional shortage of certified manual TIG welders capable of producing consistent radiographic-quality welds on thin-wall stainless was driving labour costs up 15% to 20% per year; and several high-value pharmaceutical and semiconductor facility clients had specified ASME BPE weld documentation as a contract requirement — documentation that the firm's manual TIG log sheets could not satisfy to the required standard.

The Challenge: Portable Orbital Capability Without Compromising Field Mobility

The skilled welder shortage in US sanitary piping

Thin-wall 316L stainless steel sanitary tube welding — the primary material in US food processing, beverage production, and pharmaceutical facility piping — requires a manual TIG welder to maintain arc length within ±0.5 mm, travel speed within ±5% of target, and consistent torch angle through flat, vertical, and overhead positions on tube OD from ½" (12.7 mm) to 3" (76.2 mm) at wall thicknesses of 1.24 mm to 2.11 mm. At these wall thicknesses, the heat input window between insufficient penetration and burn-through is approximately 10 A to 15 A wide. Finding welders who can hold output variation within that window across a full shift of 80 to 120 joints per day, at a wage that keeps the project financially viable, had become the binding constraint on the firm's growth.

The client's historical first-pass rejection rate on manual sanitary TIG was 3% to 5% — within industry norms, but representing 3 to 6 re-weld events per 100-joint project scope. Each re-weld on a sanitary tube joint requires grinding, re-fitting, re-welding, re-inspecting by borescope, and re-documenting — a process that adds 45 minutes to 90 minutes per rejected joint and disrupts the crew's production rhythm for the remainder of the shift. On a 200-joint pharmaceutical facility scope, a 4% rejection rate meant 8 re-weld events — equivalent to losing an entire crew-day to rework on a project where the schedule was fixed at contract.

Site mobility requirements

The client's typical project sites ranged from rooftop HVAC mechanical rooms — accessed by freight elevator, with no dedicated equipment staging area — to indoor pharmaceutical process piping in active cleanroom-adjacent spaces where equipment footprint and noise were restricted by facility protocols. The firm's service trucks carry a standardised equipment loadout for each crew: one welding system, argon cylinders, pipe prep tools, and consumable stock. Any orbital welding system that required a dedicated transport vehicle, a forklift for unloading, or a three-phase 380V power supply would be incompatible with the firm's operational model.

The power supply constraint was particularly significant: US commercial and light industrial facilities predominantly provide 120V or 208V/240V single-phase supply at standard service panels. An orbital welding system requiring three-phase 380V — standard for European industrial equipment — would require a phase converter at every site, adding cost, weight, and setup time to every deployment.

The FYID Solution: FXT20 Power Source with C80 Enclosed Welding Head

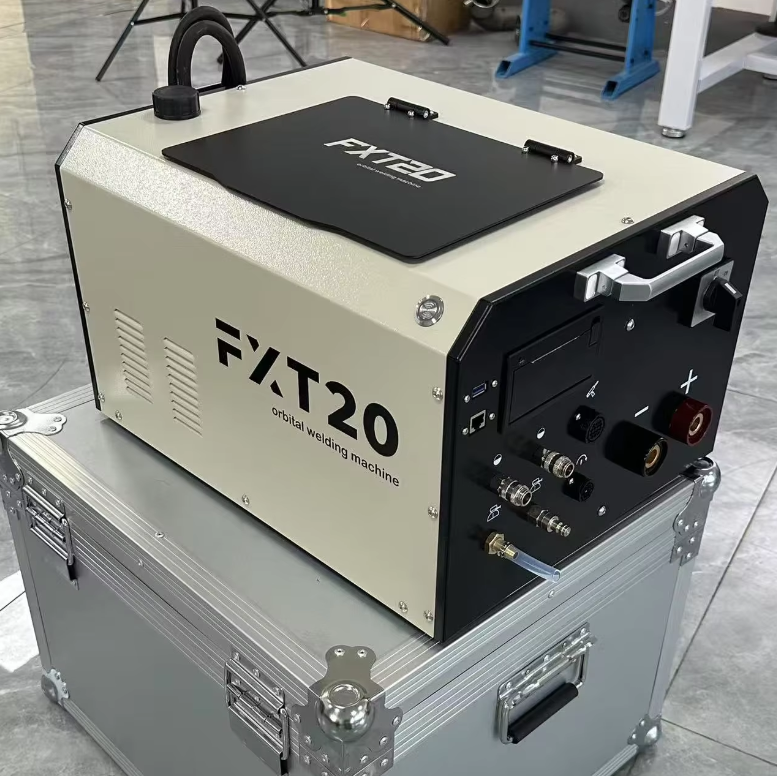

After evaluating three orbital welding systems available in the US market, the client selected the FYID FXT20 digital programmable power source paired with the C80 enclosed welding head. The selection was driven by four specific criteria that matched the firm's operational constraints.

Single-phase 220V input — US site compatible

The FXT20 operates on 220V AC ±10% single-phase input, 50/60 Hz — compatible with standard US 240V single-phase residential and light commercial service panels without a phase converter or voltage transformer. The 4.5 KVA input rating draws approximately 19 A at 240V, within the capacity of a standard 30A dedicated circuit available at most commercial facility mechanical rooms. The firm's crew connects to the site's existing electrical infrastructure without special power arrangements at any project site.

C80 head coverage for the US sanitary pipe size range

The C80 enclosed welding head covers tube outer diameters from Φ12.7 mm (½") to Φ76.2 mm (3"), at wall thicknesses from 0.5 mm to 3.0 mm. This range covers 316L stainless steel sanitary tube in the ½", ¾", 1", 1½", 2", and 3" OD sizes specified by 3-A Sanitary Standard for dairy, food, and beverage facility piping in the US market — the firm's primary project scope. A single C80 head handles the full diameter range of a typical food or beverage facility piping project without head changeover.

The C80 head weight of 5.0 kg and its water-cooled design are matched to back-to-back weld cycle production on busy service days. The FXT20's integrated 4-litre water-cooling circuit — with built-in pump and reservoir — circulates coolant through the C80 head continuously, maintaining thermal equilibrium in the torch body and electrode holder across a full shift of continuous production. The 100% duty cycle at 155A rating means the system does not require mandatory rest intervals between joints at the 60 A to 100 A operating currents used for ½" to 3" 316L sanitary tube.

48-hour operator training through the Expert Parameter Library

The FXT20's Intelligent Expert Parameter Library generates multi-segment welding parameters from tube OD and wall thickness input — the operator selects the tube specification on the 10-inch touchscreen and the system generates the qualified program. For the firm's crew of four operators, two of whom had no prior TIG welding experience, training to production proficiency on the five tube specifications in the firm's primary project scope took 48 hours of combined classroom and hands-on instruction. The training covered equipment assembly and head installation, program selection and parameter review, pre-weld fit-up requirements, argon supply management, weld report interpretation, and daily maintenance procedures. No prior TIG certification was required.

Integrated weld documentation — the "weld birth certificate"

The FXT20's built-in maintenance-free thermal printer generates a printed weld report at the conclusion of every weld cycle: weld program number, tube OD and wall thickness, current profile by segment, travel speed, arc voltage, pre-flow and post-flow times, and timestamp. The firm's project managers adopted the practice of filing each printed report by joint number in a project weld log binder, which they present to clients at project completion as a joint-by-joint documentation package. In the firm's client communications, this package is described as a "weld birth certificate" — a physical record that every joint on the project was welded at documented, qualified parameters.

This documentation package directly satisfied the ASME BPE Section MJ weld log requirement that pharmaceutical and semiconductor clients specify as a contract deliverable — the requirement that had previously excluded the firm from bidding on these higher-value scopes.

Implementation: Deployment Across Multiple Site Types

HVAC and building services sites

On rooftop and mechanical room HVAC piping projects — carbon steel and stainless steel refrigerant and chilled water piping in the 1" to 3" OD range — the FXT20 + C80 system was transported in the firm's standard half-ton service truck in the dual aviation-grade aluminium cases included in the FXT20 packing list. Setup at each site required connecting the argon supply hose, filling the 4-litre water-cooling reservoir with deionised water, connecting to the site's 240V electrical panel, and loading the tube specification programs for the day's scope. Total setup time averaged 22 minutes from truck unloading to first arc. On HVAC piping projects, the firm's crew achieved 45 to 55 joints per operator per 8-hour shift — approximately double the manual TIG output rate for the same two-person crew on the same pipe specifications.

Pharmaceutical and food processing sites

On pharmaceutical and food processing facility projects — 316L stainless steel sanitary tube in the ½" to 2" OD range, specified to ASME BPE and 3-A Sanitary Standard — the FXT20 + C80 system was operated in the facility's mechanical corridor adjacent to the cleanroom boundary, with the tube joints inside the cleanroom made through a penetration access arrangement. The system's printed weld reports were filed real-time into the project weld log and provided to the facility's validation team for inclusion in the IQ documentation package at project completion. The first-pass rejection rate on these projects, measured by visual and borescope inspection, was 0.4% — one re-weld event per 250 joints — compared to the firm's historical 3% to 5% manual TIG rate.

Quantified Results

Expanded contract scope

Within six months of FXT20 deployment, the firm had successfully bid and won two pharmaceutical facility piping contracts and one semiconductor support facility HVAC and process gas piping contract — all three requiring ASME BPE weld documentation that had been an absolute barrier to entry under the manual TIG model. The combined value of these three contracts exceeded the FXT20 system cost by a factor of eight. The firm's project manager attributed the contract wins directly to the ability to present the FXT20's per-joint documentation package as proof of ASME BPE compliance during the pre-qualification process.

Labour model transformation

The firm reduced its dependence on certified manual TIG welders from four certified welders per crew to one — retained as the lead operator and quality supervisor — with three general operators trained on the FXT20 system. The lead welder's role shifted from production welding to program qualification, fit-up quality control, and documentation management. This labour model produced a 35% reduction in per-joint labour cost on sanitary piping projects compared to the all-certified-welder crew model, while increasing per-crew daily joint output from 80 to 90 joints to 180 to 200 joints on 1" to 2" 316L stainless tube scopes.

Technical Notes for US Welding Service Providers Evaluating Orbital Systems

Power supply compatibility in US facilities

The FXT20's 220V ±10% single-phase input (50/60 Hz, 4.5 KVA) draws approximately 19 A at 240V. US National Electrical Code (NEC) requires a dedicated 30A circuit for welding equipment drawing 19 A continuous — a standard panel breaker size available in virtually all commercial and industrial facility electrical rooms. The FXT20 ships with a standard IEC 60309 plug; US deployments typically use a 30A NEMA 6-30 or L6-30 receptacle adapter at the service panel. No phase converter, voltage transformer, or generator is required for standard US commercial electrical supply.

Consumable management for multi-site deployment

The FXT20 standard packing list includes tungsten electrode grinder, argon gas connection hose (5 metres), cooling water hose (1 metre), conversion plug, gas hose fittings, collet fixtures (7 pieces), and initial tungsten electrode and printer paper stock. For multi-site service deployment, the firm maintains a consumable kit in each truck: three spare tungsten electrodes (WC20, Φ2.4 mm), one spare thermal printer paper roll, 4 litres of deionised water in a sealed container, and one spare argon regulator. Total consumable kit weight: approximately 3 kg. Argon cylinder rental is arranged at each project site through local supplier accounts, eliminating transport of high-pressure cylinders between sites.

Tube specification range for US sanitary piping

US sanitary tube in 316L stainless steel follows ASTM A270 specifications. The C80 head covers the following standard US tube sizes within its Φ12.7 mm – Φ76.2 mm range: ½" OD (12.7 mm) at 0.065" (1.65 mm) wall; ¾" OD (19.05 mm) at 0.065" wall; 1" OD (25.4 mm) at 0.065" wall; 1½" OD (38.1 mm) at 0.065" wall; 2" OD (50.8 mm) at 0.083" (2.11 mm) wall; 3" OD (76.2 mm) at 0.083" wall. All six sizes are within the C80's rated range, and all six have pre-qualified programs in the FXT20 Expert Parameter Library indexed to the ASTM A270 wall thickness specification.

Frequently Asked Questions — FXT20 for US Welding Service Providers

Does the FXT20 operate on standard US 240V single-phase power without modification?

Yes. The FXT20 is rated for 220V AC ±10% single-phase input at 50/60 Hz, drawing 4.5 KVA (approximately 19 A at 240V). It operates on standard US 240V single-phase residential and commercial electrical service — the same supply used by large HVAC equipment and electric dryers — without a phase converter or voltage transformer. A dedicated 30A circuit with an appropriate receptacle (NEMA 6-30 or L6-30) is the only electrical requirement at the site.

How does the C80 head handle the range from ½" to 3" tube without head changeover?

The C80 enclosed welding head uses adjustable collet fixtures to clamp tube OD from Φ12.7 mm to Φ76.2 mm. Changing from one tube size to another within this range requires swapping the collet set — a 5 to 8 minute process — and selecting the corresponding stored program from the FXT20's 200-group Expert Parameter Library. No head replacement is required within the ½" to 3" range. Head changeover to a different C-Series model (C10 for smaller diameters, C120 for 4" tube) takes under 10 minutes including the gas connection transfer.

What is the FXT20's first-pass weld quality on 3-A sanitary tube compared to manual TIG?

On 316L ASTM A270 sanitary tube in the ½" to 3" OD range, the FXT20 achieves first-pass rejection rates of 0.3% to 0.5% on projects where fit-up preparation follows the specified procedure (CM Series or facing machine end prep, zero to 0.1 mm fit-up gap). This compares to industry baseline first-pass rejection rates of 3% to 6% for manual TIG on the same specifications. The primary driver of the quality improvement is the elimination of arc-length and travel-speed variation across the overhead and vertical positions of the circumferential weld — variables that manual TIG cannot hold constant across a production shift.

Can the FXT20 weld carbon steel tube in addition to stainless for HVAC applications?

Yes. The FXT20 and C80 head weld carbon steel tube in the same OD and wall thickness range as stainless steel. Carbon steel orbital TIG welding uses different program parameters — higher steady-state current for the same OD and wall thickness, due to carbon steel's higher thermal conductivity versus 316L — but the process is otherwise identical. The Expert Parameter Library includes pre-qualified programs for carbon steel tube in the common HVAC sizes. Note that carbon steel orbital TIG does not produce the oxidation-free bore surface that the enclosed head achieves on stainless — for carbon steel, bore oxidation is aesthetically present but structurally acceptable in non-sanitary HVAC service.

What maintenance does the FXT20 require between project sites?

Between project sites, the standard maintenance tasks are: check and top up deionised water in the 4-litre cooling reservoir (takes 2 minutes); inspect the C80 head collet fixtures for wear and replace if collet clamping force is reduced (consumable, typically replaced every 200 to 300 joints); inspect tungsten electrode tip geometry and re-grind if erosion is visible (takes 3 minutes with the included grinder); replace printer paper roll if less than 20% remaining; and inspect the argon hose connections for integrity. Total between-site maintenance time: 15 to 20 minutes. The FXT20's IP21 protection rating provides dust resistance adequate for transport in open truck beds between sites.
