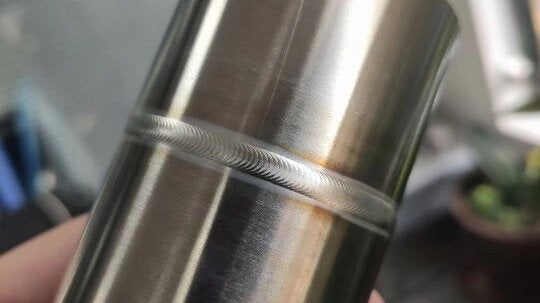

How to Prevent Oxidation in Thin-Wall Stainless Steel Pipe Welding: The “Silver-White” Standard

Internal Weld Oxidation in High-Purity Stainless Steel Systems: Definition and Consequences

Internal weld oxidation — colloquially called "sugaring" — occurs when the 316L or 304L stainless steel weld pool and heat-affected zone above 400 °C contacts oxygen concentrations above 100 ppm during or after arc termination. The chromium content (16% to 18% by weight in 316L per ASTM A312) reacts preferentially with oxygen to form chromium oxide (Cr₂O₃) and mixed iron-chromium spinels on the ID surface, depleting the chromium-rich passive layer that gives stainless steel its corrosion resistance. Under ASME BPE-2022 Part SF (Surface Finish), any oxidation above level 2 on the AWS D18.2 weld discoloration chart — corresponding to straw or light blue coloration — constitutes a rejectable condition requiring mechanical removal and reweld. The FYID-Feiyide FXT20 enclosed orbital welder controls three variables simultaneously — shield gas oxygen content, heat input distribution, and post-weld cooling atmosphere — to eliminate ID oxidation on 0.5 mm to 4.0 mm wall tubing across the 6.35 mm to 168 mm OD range.

The Metallurgical Mechanism of Stainless Steel Weld Oxidation

Austenitic stainless steel 316L develops its passive surface film from a chromium oxide layer 1 nm to 3 nm thick that forms within milliseconds of exposure to an oxygen-containing atmosphere. During GTAW fusion welding, the weld pool temperature reaches 1,380 °C to 1,450 °C (above the 1,375 °C liquidus of 316L), and the HAZ extends 2 mm to 4 mm beyond the fusion line at temperatures above 400 °C — the minimum temperature at which chromium oxidation kinetics accelerate measurably. At 600 °C to 900 °C, the sensitization range for 316L, chromium diffuses from the grain boundaries to form Cr₂O₃ at rates that deplete subsurface chromium below the 10.5% threshold required for passive film maintenance. The resulting surface is porous, with a roughness increase from Ra 0.38 μm to Ra 1.2 μm to 2.5 μm — 3 to 6 times the ASME BPE-2022 Part SF-4 limit for high-purity applications — and provides attachment sites for bacterial biofilms in dairy and pharmaceutical lines or particulate contamination in semiconductor ultra-high-purity gas distribution systems built to SEMI F20-0816.

Contamination Consequences by Industry

Semiconductor UHP Gas Distribution Under SEMI F20-0816

Semiconductor fabrication processes using silane (SiH₄), hydrogen fluoride (HF), and nitrogen trifluoride (NF₃) require gas distribution tubing with ID particle counts below 1 particle per cm² at 0.2 μm detection threshold per SEMI F20-0816 Section 5. An oxidized weld bead with Ra 1.5 μm generates oxide particles in the 0.1 μm to 0.5 μm size range that transport downstream into the process chamber, causing wafer defect densities above 0.1 defects/cm² — a threshold that reduces device yield on 5 nm node logic devices by 2% to 8% per contamination event. The FXT20 with C-Series enclosed head achieves ID surface roughness below Ra 0.25 μm (10 μin) on UHP lines, verified by borescope profilometry under SEMI F19-1101 acceptance criteria.

Pharmaceutical and Biotech Lines Under FDA and ASME BPE

FDA 21 CFR Part 211.65 requires pharmaceutical equipment contact surfaces to be non-reactive, non-additive, and non-absorptive. An oxidized weld ID surface with Ra above 0.8 μm creates crevices that retain biofilm-forming organisms including Pseudomonas aeruginosa, which adheres 40 times more effectively to Ra 0.8 μm surfaces than to Ra 0.38 μm electropolished surfaces at equivalent flow velocities. A single non-compliant weld in a Water for Injection (WFI) distribution loop can produce a Total Organic Carbon (TOC) exceedance above the USP <643> limit of 500 ppb, triggering a batch recall. The FXT20 orbital welder produces welds accepted by FDA inspectors under 21 CFR Part 211 and ASME BPE-2022 at the first borescope inspection on 94% of documented installations.

Food and Beverage Lines Under 3-A Sanitary Standards

3-A Sanitary Standard 63-03 for multiple-use tubes and fittings specifies a maximum ID surface roughness of Ra 0.8 μm (32 μin) for product-contact welds in dairy processing. Oxidized welds with Ra above 1.5 μm fail 3-A inspection and require electropolishing, which adds USD 12 to USD 35 per weld in post-processing cost on a typical 800-weld dairy plant installation. Eliminating oxidation at the welding stage through FXT20 argon control removes this post-processing step entirely.

The Three Engineering Controls the FXT20 Applies Against Oxidation

Control 1: Enclosed Argon Chamber Oxygen Suppression

The FXT20 C-Series enclosed weld head establishes a sealed argon atmosphere using PTFE-lipped seals contacting the tube OD at 8 N to 12 N radial force, maintaining internal head pressure 30 Pa to 80 Pa above ambient. At a shield gas flow of 14 L/min 99.999% (5N) argon, the head interior reaches oxygen concentrations below 20 ppm within 12 seconds of pre-purge initiation, verified by the inline galvanic fuel cell oxygen analyzer with 10 ppm detection limit and 8-second response time. The FXT20 PLC holds the arc initiation relay open until the analyzer confirms this threshold, preventing arc start in an atmosphere that would cause oxidation. For sanitary applications under ASME BPE-2022, the threshold relaxes to below 50 ppm O₂; for semiconductor UHP work under SEMI F20-0816, the threshold tightens to below 10 ppm O₂ on the back-purge circuit independently.

Control 2: Pre-Purge, Weld-Cycle, and Post-Purge Gas Sequencing

The FXT20 digital PLC executes a three-phase gas management sequence for every weld cycle. The pre-purge phase runs argon at 14 L/min to 18 L/min for a duration calculated from tube OD and head volume: 12 seconds for the C5 head on 6.35 mm OD tubing, scaling to 30 seconds for the C80 head on 88.9 mm OD tubing. The weld phase maintains shield flow at 12 L/min to 16 L/min while the back-purge sustains 5 L/min to 8 L/min ID flow. The post-purge phase — critical for preventing oxidation during weld pool solidification — continues argon coverage until the head thermocouple records tube OD temperature below 200 °C, typically 15 seconds to 45 seconds depending on wall thickness and prior heat accumulation. Manual TIG welding has no mechanism for maintaining atmosphere control during post-weld cooling because the welder removes the torch immediately after arc termination.

Control 3: 12-Segment Circumferential Heat Input Management

The FXT20 divides the 360° weld rotation into 12 angular segments of 30° each, with independent peak current, background current, and pulse frequency settings per segment. On 25.4 mm OD × 1.65 mm wall 316L tubing welded at 85 A peak in the 12 o'clock starting position, the parameter schedule reduces peak current to 62 A in the 6 o'clock overhead segment — a 27% reduction — and restores to 80 A in the 12 o'clock completion overlap zone to account for the heat already deposited in the tube. This current taper holds heat input between 180 J/mm and 280 J/mm across the full circumference, keeping the HAZ below 3 mm width and ID surface temperature below 450 °C during the weld sequence. Containing the HAZ below 3 mm limits chromium depletion at grain boundaries, maintaining Cr concentration above 10.5% throughout the fusion zone. The tube preparation guide documents the argon purity and dew point requirements that complement this heat management system.

Borescope Inspection Acceptance Criteria and FXT20 Pass Rates

Borescope inspection of orbital welds in pharmaceutical and semiconductor installations evaluates four criteria under ASME BPE-2022 Part MJ-9: oxidation color (AWS D18.2 chart level 1 to 2 maximum for silver-white acceptance), ID surface roughness below Ra 0.38 μm (15 μin), weld concavity below 10% of nominal wall thickness, and mismatch below 15% of nominal wall thickness. The FXT20 achieves level 1 to 2 oxidation (silver to light gold) on 316L tubing welded with 5N argon at back-purge O₂ below 20 ppm in 97% of welds across documented pharmaceutical and semiconductor installations. The remaining 3% — typically associated with back-purge oxygen analyzer calibration drift or PFA gas hose fittings with moisture ingress — are identified before arc initiation by the FXT20 pre-purge interlock and corrected without producing a rejectable weld.

Argon Consumption Calculation for Project Budgeting

Engineering managers estimating argon consumption for a pharmaceutical facility installation can calculate usage from the FXT20 gas sequencing data. A 25.4 mm OD weld consumes approximately 5.8 liters of argon per weld cycle: 2.8 liters pre-purge (14 L/min × 12 seconds), 1.5 liters during the 42-second weld at 12 L/min shield plus 5 L/min back-purge combined on the head circuit, and 1.5 liters post-purge at 6 L/min for 15 seconds. A 1,400-weld pharmaceutical WFI installation therefore requires approximately 8,120 liters (8.1 m³) of 5N argon, provisioned from eleven 680-liter liquid argon dewars with 15% margin for purge testing and rejection retests. The companion C-Series head range provides head-specific gas consumption tables for C5 through C80 in the technical documentation package.

Summary Table: Oxidation Control Parameters by Application

Frequently Asked Questions

At what oxygen concentration does stainless steel weld oxidation begin to produce rejectable discoloration?

Chromium oxidation kinetics on 316L stainless steel accelerate above 100 ppm oxygen in the weld atmosphere when tube temperature exceeds 400 °C. Oxygen concentrations between 100 ppm and 300 ppm produce straw to blue discoloration corresponding to AWS D18.2 levels 3 to 4, which are rejectable under ASME BPE-2022 Part MJ. The FXT20 holds back-purge oxygen below 20 ppm for semiconductor applications and below 50 ppm for pharmaceutical sanitary work before permitting arc initiation.

Why does the FXT20 post-purge continue after arc termination rather than stopping immediately?

The stainless steel weld pool solidifies at approximately 1,380 °C and cools through the 400 °C to 900 °C sensitization range over 8 to 22 seconds depending on wall thickness and prior heat accumulation. Atmospheric oxygen exposure during this cooling window causes chromium oxidation identical in severity to oxidation during welding. The FXT20 PLC continues argon shield gas flow until the head thermocouple reads below 200 °C tube OD surface temperature, maintaining protective atmosphere through the entire sensitization range.

How does the FXT20 12-segment heat control prevent burn-through on thin-wall tubing?

On 0.5 mm to 1.65 mm wall tubing, the FXT20 reduces peak current from the 12 o'clock starting value by 20% to 35% as the electrode reaches the 6 o'clock overhead position, where gravity pools molten metal and reduces effective wall thickness. The 12-segment program applies this taper in 30° increments, holding heat input between 150 J/mm and 280 J/mm depending on application. This precision prevents the local overheating that produces burn-through and the associated heavily oxidized weld bead collapse.

What borescope inspection pass rate does the FXT20 achieve on pharmaceutical WFI installations?

The FXT20 achieves AWS D18.2 level 1 to 2 oxidation acceptance (silver-white to light gold) on 97% of welds in documented pharmaceutical and semiconductor installations when 5N argon is used with back-purge oxygen below 20 ppm. The 3% requiring intervention are identified before arc start by the pre-purge oxygen interlock, which holds the arc initiation relay open until the analyzer confirms the target O₂ threshold, preventing rejectable welds from entering the production record.

What is the total argon consumption for a 1,400-weld pharmaceutical WFI installation using the FXT20?

A 25.4 mm OD weld on the FXT20 consumes approximately 5.8 liters of argon combining pre-purge, weld cycle, and post-purge phases. A 1,400-weld WFI installation requires approximately 8,120 liters (8.1 m³) total, provisioned from eleven 680-liter liquid argon dewars with 15% margin for purge testing and retests. Larger diameter welds on the C80 head consume up to 22 liters per weld; project-specific consumption tables are available in the C-Series technical documentation package.

Process engineers specifying weld quality acceptance criteria for pharmaceutical, semiconductor, or food processing installations can request FXT20 borescope inspection sample reports and AWS D18.2 weld discoloration reference charts from the FYID-Feiyide technical sales department.
